The ABB A9-30-10 is a 3-pole contactor with one normally open auxiliary contact, rated for 220-230 V 50 Hz coil voltage. It switches motor loads up to 5.5 kW at 690 V, which means it fits small-to-medium three-phase induction motors in pump, fan, or conveyor applications where the auxiliary contact handles a status feedback or interlock.

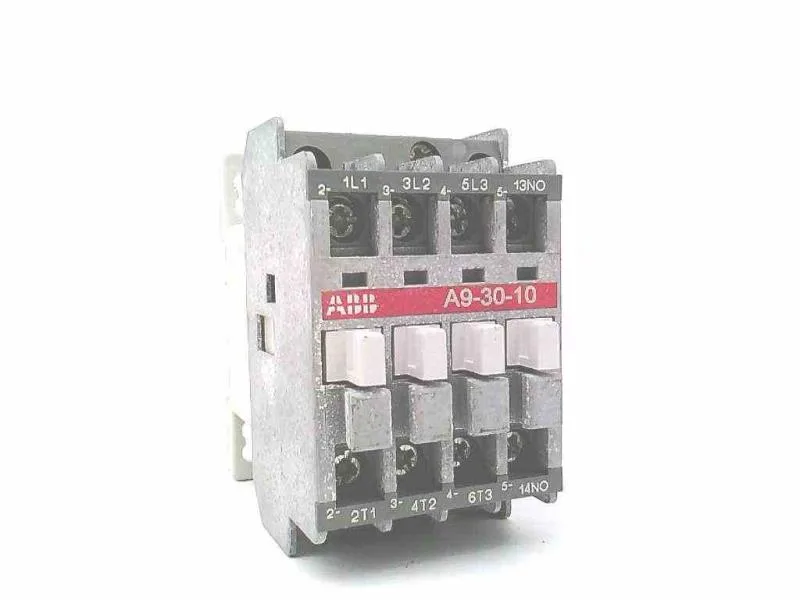

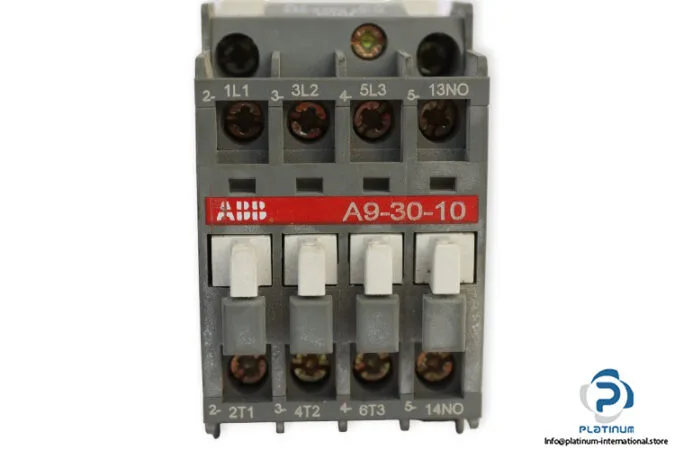

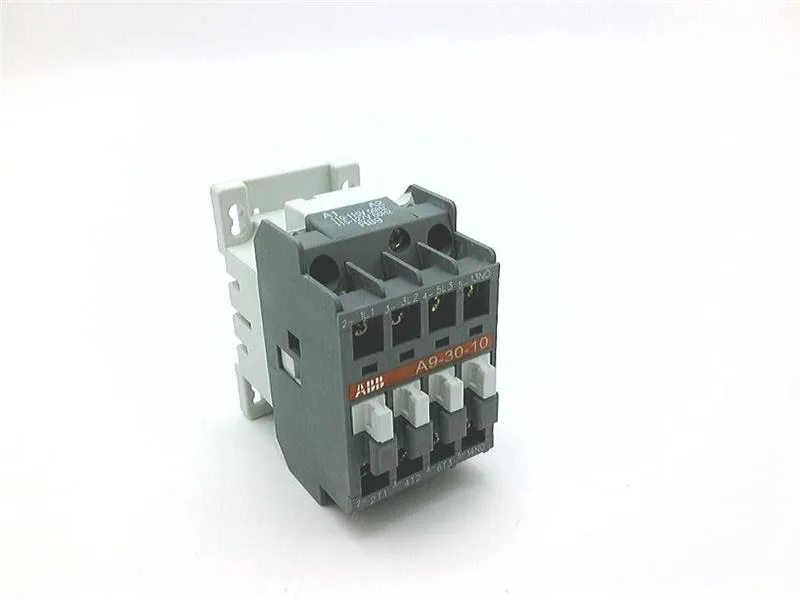

ABB A9-30-10 Contactor, 3NO+1NO Aux, 5.5 kW at 690V
MPNA9-30-10
End of Life
ABB A9-30-10 contactor, 3 main NO + 1 auxiliary NO, 220-230 V 50 Hz coil, 5.5 kW at 690 V, 44 x 74 x 74 mm, 0.33 kg.
$86.27Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Contactor |
| Model | A9-30-10 |
| Weight | 0,33 kg |
| Condition | Used |
| Shelf no. | 240326 |
| Dimensions | 44 x 74 x 74 mm |

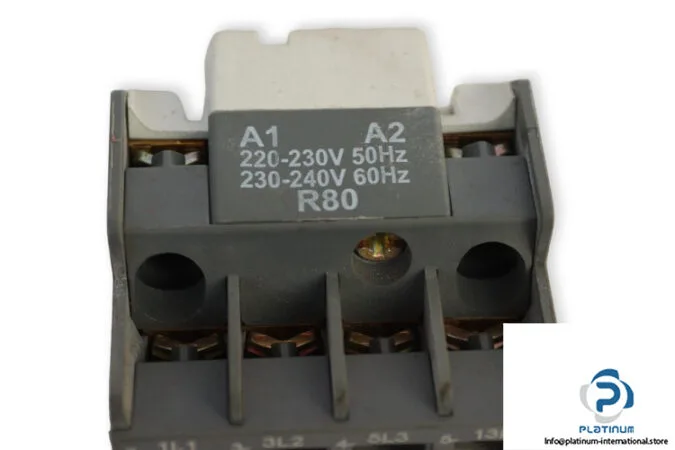

| Coil voltage | 220-230 V 50 Hz |
| Rated frequency | 50/60 Hz |
| Type of product | Contactor |
| Rated operational power | (690 V) 5.5 kW |
| Voltage | Auxiliary Circuit 690 V |
| Number of main contacts NO | 3 |
| Number of auxiliary contacts NO | 1 |
Product details
Frequently asked questions
Where can I buy A9-30-10 and how do I get a price?
We source the A9-30-10 to order against an RFQ. Submit a request for quote; availability and current pricing are confirmed at quote time.
What is A9-30-10's listed type and model?
The listed type is Contactor and the model is A9-30-10.
Will A9-30-10 drop into a panel that was specified around A26-22-00-84RT without rewiring?
Not directly. The A26-22-00-84RT has a different contact configuration and weight; verify coil voltage and auxiliary contact arrangement before substituting.
MPN
A9-30-10
