ABB A95-30-11-84

ABB A95-30-11-84 Contactor, 95 A, 3-Pole, 120 VAC Coil

MPN A95-30-11-84
End of Life

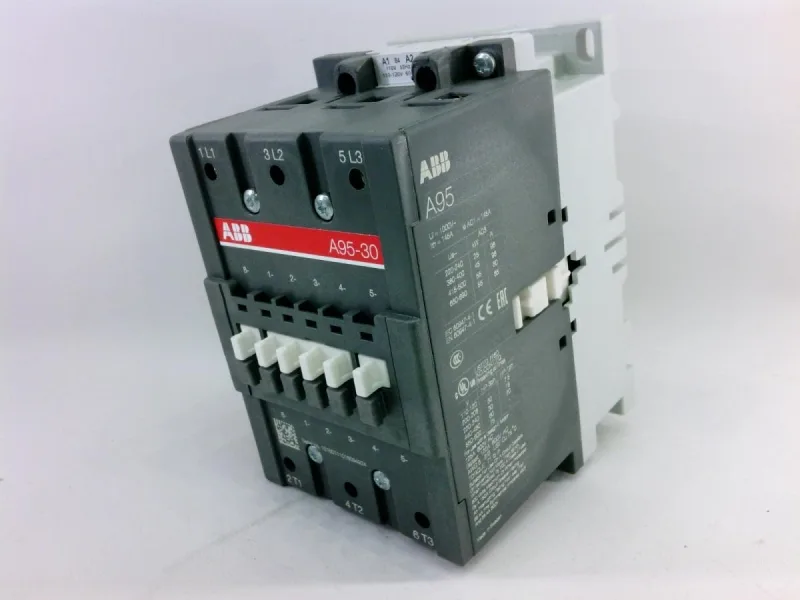

ABB A95-30-11-84, A-Line Series, A95 Frame, 3-pole IEC contactor, 95 A motor current, 125 A general purpose, 600 V rated, 120 V AC coil, with 1 NO + 1 NC auxiliary contact block.

$1,095.95 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

A95-30-11-84 specifications
ParameterValue
Product typeContactor
Current95 A
Poles3

Product details

Rated 95 A — motor switching fit

The A95-30-11-84: This 3-pole IEC contactor is rated 95 A motor current (AC-3 duty) and 125 A general-purpose (AC-1) at 600 V. The 95 A figure governs motor switching — it handles a 95 A full-load current on a three-phase motor, which typically corresponds to a 45–55 kW motor at 400 V. The 120 V AC coil means the control circuit must supply 120 VAC to pull in the armature; the coil draw is standard for the A95 frame.

What ships in the carton — aux block included

The A95-30-11-84 ships with a factory-fitted 1 NO + 1 NC auxiliary contact block on the front of the contactor. That means the kit is complete for applications needing one feedback signal and one interlock — no separate aux block purchase is needed to get the first two auxiliary contacts. The A95 frame accepts additional side-mount aux blocks if the application requires more than two contacts.

Panel drop-in vs the A95-30-00-84

The A95-30-00-84 is the same A95 frame, same 95 A rating, same 120 VAC coil — but it ships without the auxiliary contact block. If your panel was wired around the -00-84 variant, the -11-84 drops into the same DIN-rail footprint and the same power wiring. The only difference is the aux block on the front; the mounting holes, coil terminals, and main pole spacing are identical. No rewiring is needed for the power circuit, though the aux wiring must account for the extra NO/NC pair.

MPN
A95-30-11-84
