ABB ACH580-01-044A-4+0J400+P922 — AC Drives (VFD)

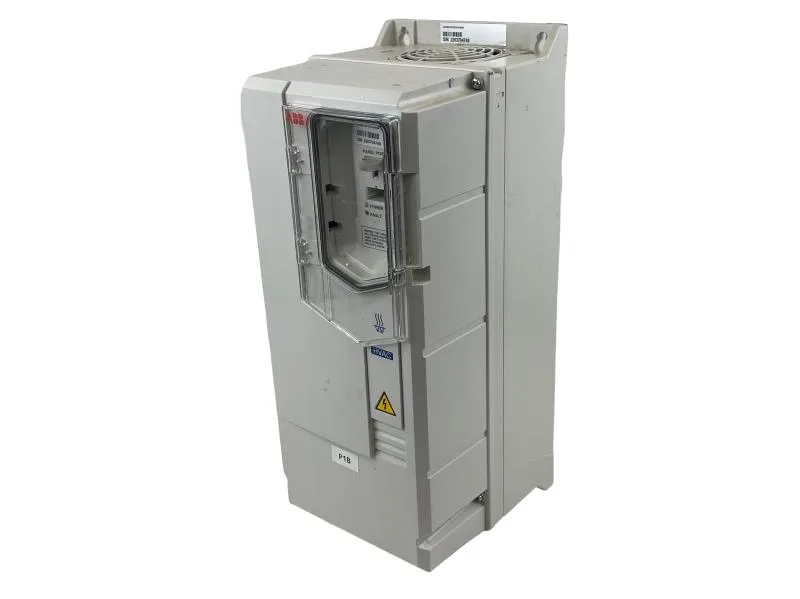

ABB ACH580-01-044A-4+0J400+P922 drive, 10.89 kg

MPNACH580-01-044A-4+0J400+P922

ABB ACH580-01 wall-mount drive, configured ACH580-01-044A-4+0J400+P922, 10.89 kg, catalogued under Motors & Motor Controls › Drives › Motor Drives.

$3,867.91Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ACH580-01-044A-4+0J400+P922 — Mechanical
ParameterValue
Weight10.89 kgs

Product details

What you're looking at

The ABB ACH580-01-044A-4+0J400+P922 is a wall-mount ACH580-01 series drive in the 44 A 400 V frame, ordered with the +0J400 and +P922 option suffix stack attached. It sits in the ABB ACH580-01 family, a wall-mount line used on HVAC fans, pumps, and general industrial motors that need sensorless vector control without a separate cabinet.

Where this frame lands in the family

Within the ACH580 line, the -01 suffix marks the wall-mount IP21/Type 1 frame, and the 044A current rating places it well above the 14 A and 23 A units that bracket the small-motor end of the family.

Frequently asked questions

Does the ACH580-01-044A-4+0J400+P922 drop into a panel laid out for the ACH580-VCR-027A-4?

No — the ACH580-VCR-027A-4 is a different cabinet-format (VCR) drive at 13.61 kg with a different footprint, so a panel cut around it will not accept the wall-mount ACH580-01-044A-4 without redrilling and rework.

MPN
ACH580-01-044A-4+0J400+P922
