What the order code points to

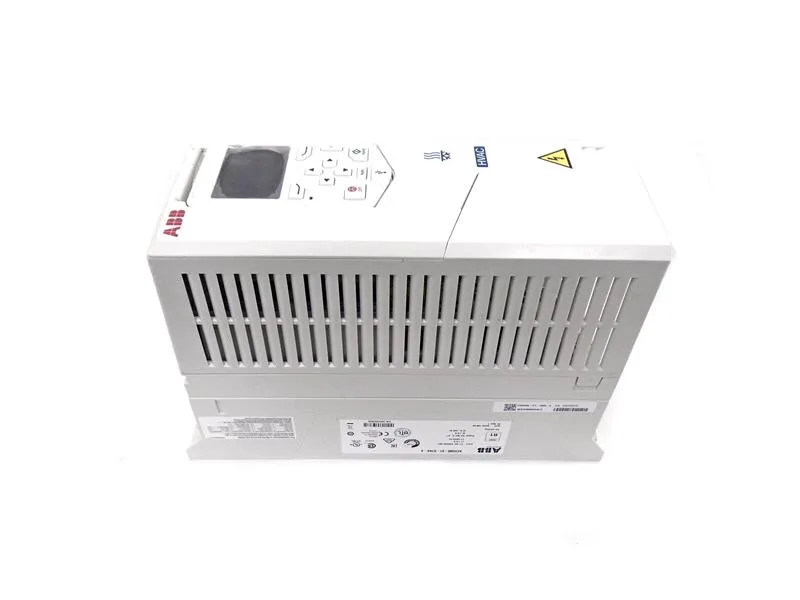

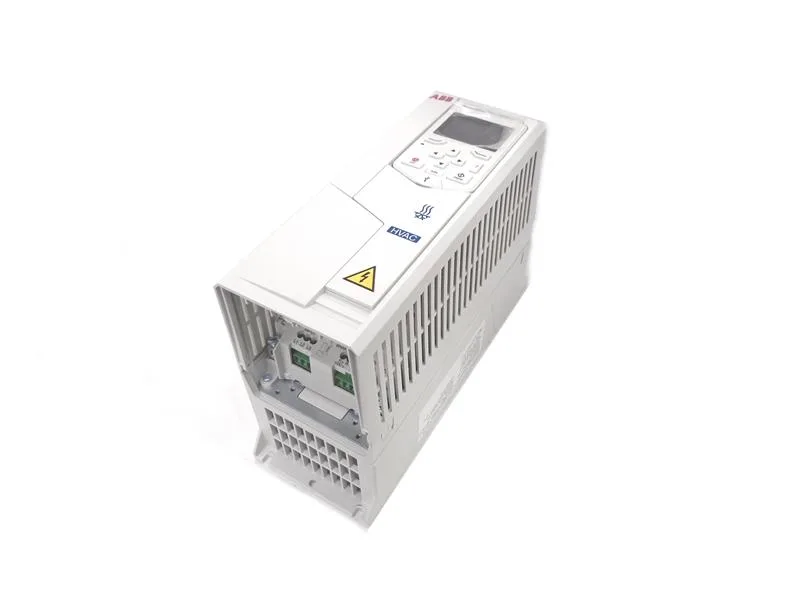

The ABB ACH580-01-07A6-4 is the 07A6-4 frame in the wall-mount ACH580-01 series. Peer set on record includes ACH580-01-07A6-4, ACH580-01-014A-4, and ACH580-01-023A-4. It ships at 4.99 kgs, which is light enough for a single-person panel lift but still needs the footprint on the wall plate planned before the drive lands — the 014A-4 and 023A-4 frames on the same platform both come in at 6.80 kgs.
Frame and panel-fit notes
The 07A6-4 lives in the same ACH580-01 wall-mount chassis family as the 014A-4, so the control terminal layout, the fieldbus option slot, and the cable entry pattern carry across — the change between codes is rated current, not the panel cut-out or the keypad. The VCR-027A-4 is a different chassis (VCR, not 01) and is not a same-frame substitute at 13.61 kgs. The 07A6-4 fits pump and fan loads at the lower current end of the ACH580-01 peer set. For longer motor cable runs, plan the output filter and dV/dt mitigation as on the next size up.
