What this order code is

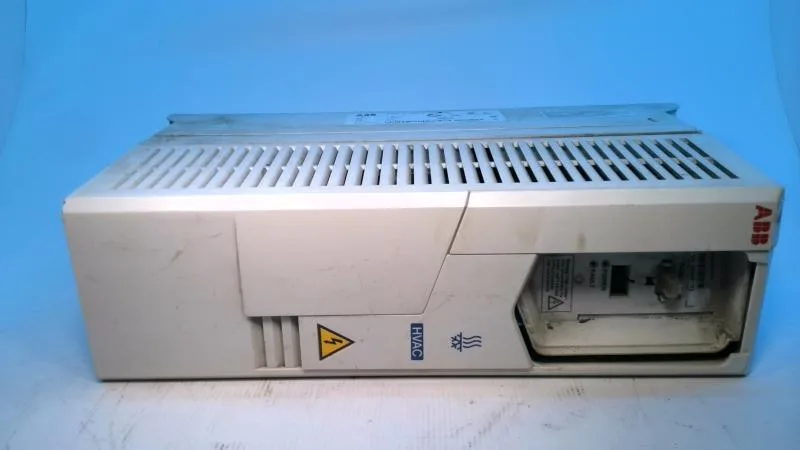

The ABB ACH580-01-09A0-6 is the Motor Drives entry in the ACH580 series — the 01-frame wall-mount variant in the family used for general-purpose and HVAC-driven motor control on industrial panels. It falls under the Drives / Motor Drives branch of the ABB catalog, confirming a variable-frequency drive chassis rather than a soft starter, servo pack, or motor itself. Listed weight is 6.80 kgs, which sits in the one-person-lift band and is the right figure to carry into cabinet bracing and replacement-handling planning rather than motor sizing.
Where it fits in the ACH580 family
Two same-frame peers — ACH580-01-014A-4 and ACH580-01-023A-4 — carry the same 6.80 kgs mass and the same Drives classification, sitting in adjacent current ratings within the same 01 chassis and therefore serving as the natural step-up or step-down alternatives in a panel layout that already accepts this footprint.
Mounting and panel-build notes
Panel layout treats this drive as a wall-mount chassis with the mass concentrated near the backplate — the 6.80 kgs figure is the load the cabinet hinge and backplane need to carry through the full ambient range of a motor-room or MCC line-up. Within the ACH580-01 family, the matching 6.80 kgs siblings hold the same depth and cutout convention, so a 014A-4 or 023A-4 chassis can be substituted on the same mounting pattern when a current-class shift is acceptable; the 27A-4 VCR does not share that pattern.
