What landed on the desk

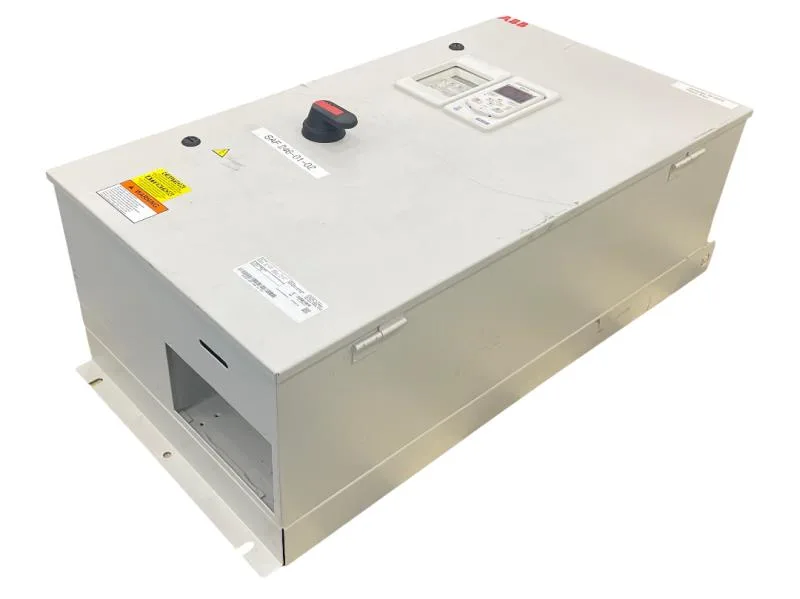

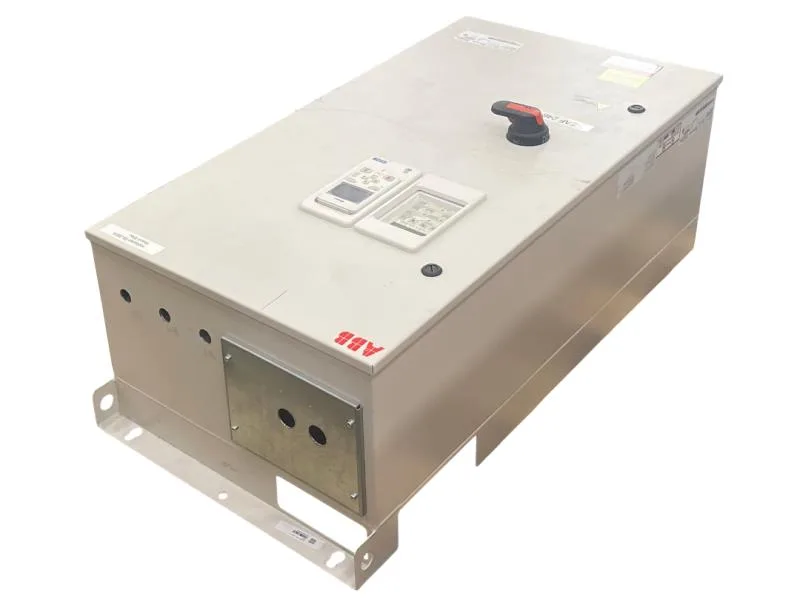

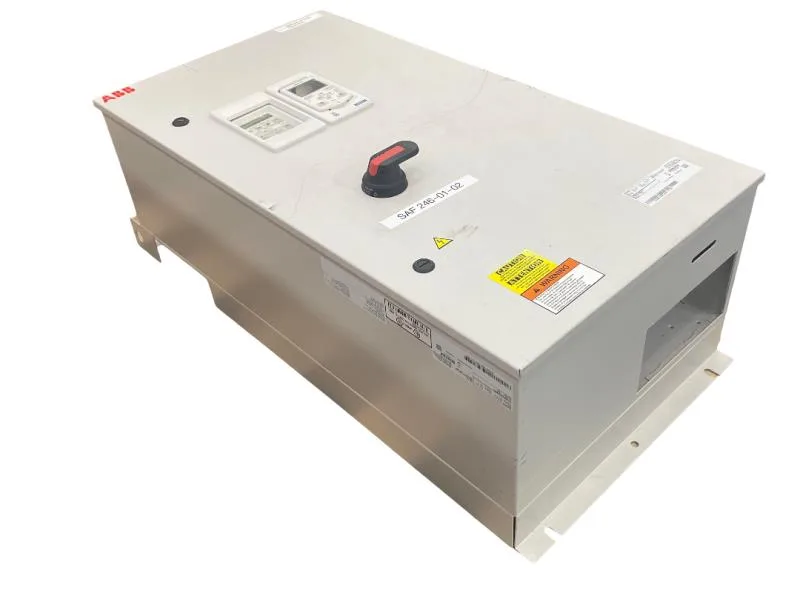

The ABB ACH580-BCR-046A-2+F267 is an HVAC drive in the BACR (bypass) sub-family of the ACH580 series, built for fan and pump duty in building-services cabinets. The BCR suffix indicates an integrated disconnect/bypass arrangement, not a bare catalog row. Listed mass is 63.05 kgs per the spec row, so handling and backplate loading should be planned before the bypass contactor and reactors are added on the same panel.
Why the BACR suffix changes the panel
The BACR configuration bundles the drive with a bypass path so the motor can run across-the-line when the VFD is faulted or taken out for service. For a site-electrical engineer, that means SCCR and short-circuit coordination are now sized around the BYPASS breaker, not just the drive's own semiconductor fault withstand — a useful thing to remember when the inspector pulls the one-line. For a commissioning engineer, the ACH580-BCR is commissioned as a single coordinated package: drive parameters, bypass interlock logic, and the contactor hand-off are all set in one commissioning pass rather than a separate across-the-line starter follow-on. Plan the FAT around that — the I/O map includes the bypass contactor state feedback, not just drive run/ready.
Where the class sits
The ACH580 line is ABB's HVAC-dedicated drive family; the BCR variant is the bypass-equipped SKU typically specified for critical air-handler installs where motor must keep turning if the drive goes dark. It is the SKU you see in retrofit bids where the engineer wants one UL-listed assembly rather than a separate drive + starter pair.
Cross-shop note against the ACS580-01
Mass class is comparable (ACS580-01-180A-4 lists 54.43 kgs vs the ACH580-BCR-046A-2+F267 at 63.05 kgs), so backplate and handling assumptions are in the same range, but that physical similarity is the only overlap — function and family differ.
