ABB ACS180-04N-045A-4 — AC Drive (VFD) 480V

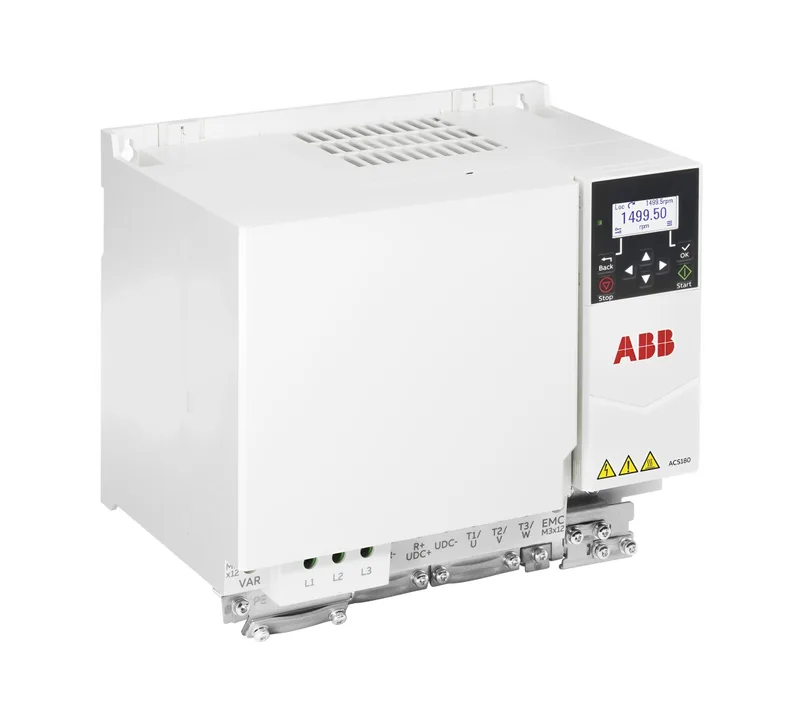

ABB ACS180-04N-045A-4 drive, 380-480 V, R4 frame

MPNACS180-04N-045A-4

ABB ACS180-04N-045A-4 LV AC machinery drive module, R4 frame, 380-480 V three-phase input, IP20 open type, module mount.

$1,033.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

ACS180-04N-045A-4 — Input / Supply
ParameterValue
Input voltage range380 ... 480 V
Number of phases3
Frequency47.5 ... 63 Hz
ACS180-04N-045A-4 — Mechanical & Cooling
ParameterValue
Frame sizeR4
NEMA enclosure typeOpen Type
Degree of protection (IP)IP20
Mounting typeModule
ACS180-04N-045A-4 — Other specifications
ParameterValue
Width260 mm
Height205 mm
Weight5.3 kg
Depth (Length)178 mm

Product details

The ACS180-04N-045A-4 is an LV AC machinery drive module in the ACS180 family, sized to the R4 frame, and it is the part the procurement line usually names when a three-phase feeder is being retrofitted or extended on a machinery cell. Input envelope is 380... 480 V on a three-phase supply at 47.5... 63 Hz, which decides whether the drive drops onto an existing cabinet without re-rating the feeder.

Enclosure and what the cabinet has to do

The enclosure rating is IP20 / Open Type, which means the drive itself does not seal against dust or drips — the surrounding cabinet has to carry that rating, and the cooling path has to assume the drive is mounted with the clearances the R4 frame datasheet specifies.

Frequently asked questions

What frame size is the ACS180-04N-045A-4 and what does it mean for the cabinet?

R4 frame, IP20 open type, module mount — the drive relies on the cabinet for ingress protection, and the R4 footprint governs the cut-out and the airflow clearance around the unit.

What are the ACS180-04N-045A-4's mounting dimensions?

260 mm wide by 205 mm tall by 178 mm deep, at 5.3 kg module weight.
