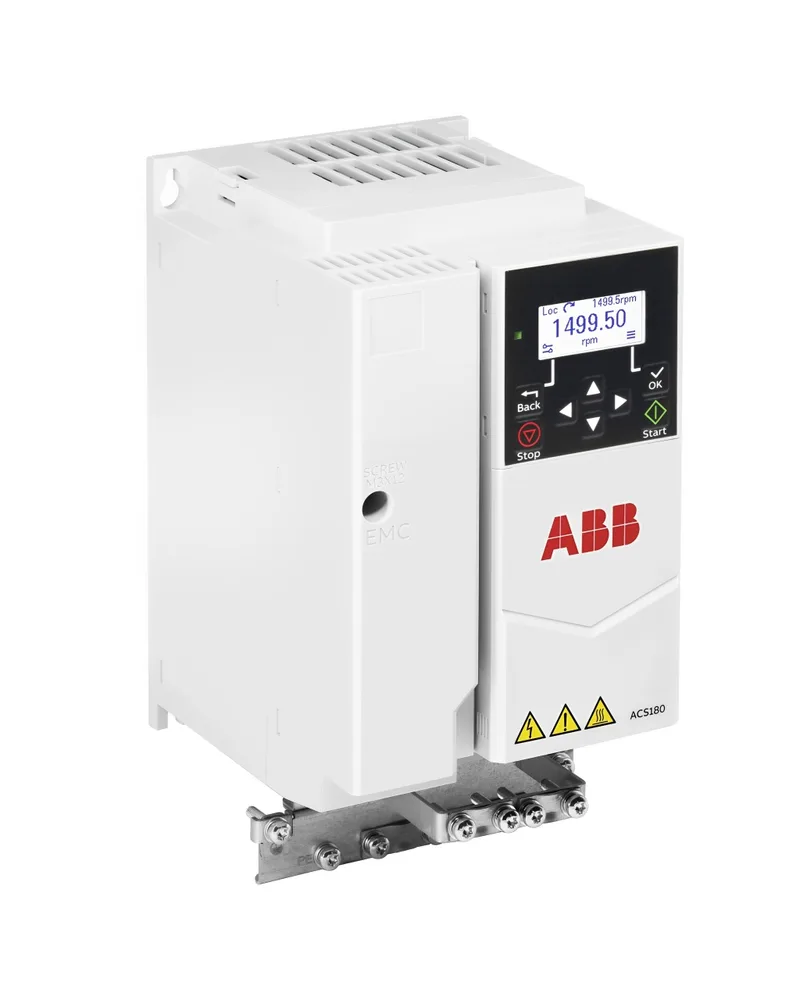

ABB ACS180-04N-17A0-4

ABB ACS180-04N-17A0-4 drive, 380-480 V, R2

MPN ACS180-04N-17A0-4

ABB ACS180-04N-17A0-4 LV AC machinery drive module, 3-phase 380–480 V supply at 47–63 Hz, frame R2, IP20 open type, MODBUS communications.

$447.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

ACS180-04N-17A0-4 specifications
ParameterValue
Input voltage380 ... 480 V
Frequency47 ... 63 Hz
Phases3-phase
IP ratingIP20
ProtocolMODBUS
MountingModule
Width4.724 in
Height9.055 in
Weight4.431 lb
Frame sizeR2

Product details

Power and environment envelope

The ACS180-04N-17A0-4: Supply envelope is 380–480 V three-phase at 47–63 Hz, so the panel-side feeder must deliver a regulated three-phase LV rail within that band — single-phase operation is not on the rating sheet. Altitude ceiling is 2000 m above sea level; installations above that line require the derating guidance from the ACS180 manual. Open Type / IP20 housing means the module needs an enclosure rated for the actual install environment (dust, washdown, outdoor) — the drive itself contributes no ingress protection beyond IP20.

Controls slice

Fieldbus on the listed protocol set is MODBUS, which fixes the wiring from the ACS180-04N-17A0-4 to whatever MODBUS master sits on the cell network — there is no second protocol on the base module. The base I/O slice is two analog inputs and one analog output; any extra digital or analog channels beyond that count require the matching ACS180 option modules rather than the bare unit.

MPN
ACS180-04N-17A0-4
