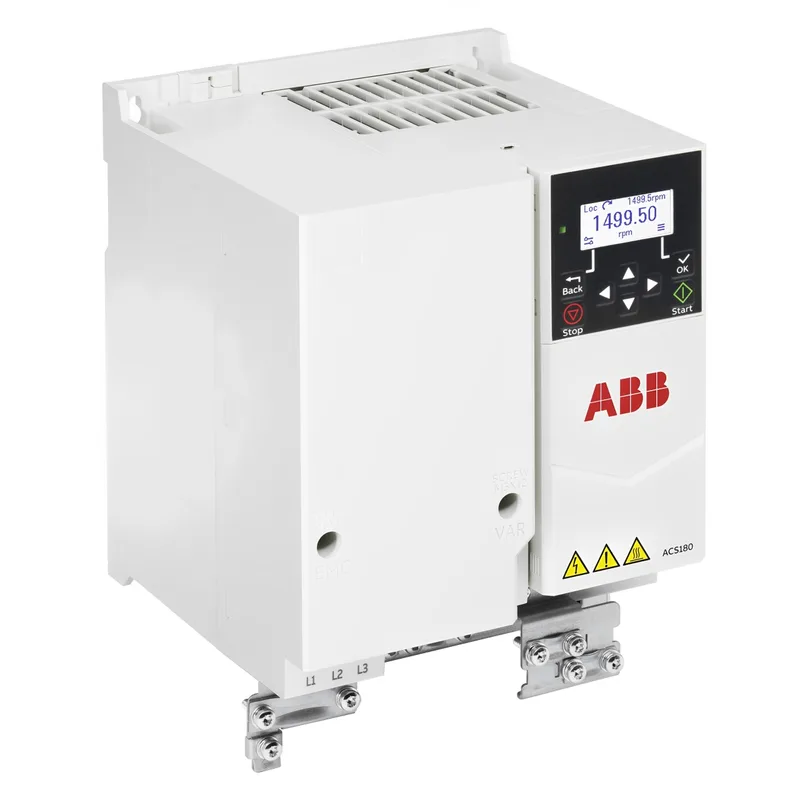

ABB, ACS180 series, LV AC machinery drive module, order code ACS180-04N-25A0-4, 3-phase 380–480 V at 47.5–63 Hz, R3 frame, IP20 open type, module mount.
| Parameter | Value |
|---|---|
| Input voltage range | 380 ... 480 V |
| Number of phases | 3 |
| Frequency | 47.5 ... 63 Hz |
| Parameter | Value |
|---|---|
| Frame size | R3 |
| NEMA enclosure type | Open Type |
| Degree of protection (IP) | IP20 |
| Mounting type | Module_NO UNIT$ |
| Parameter | Value |
|---|---|
| Width | 170 mm |
| Height | 205 mm |
| Weight | 3.3 kg |
| Depth (Length) | 174 mm |
The ACS180-04N-25A0-4: Mounting is module-style, not a through-panel or wall-mount form factor, and the enclosure is rated IP20 open type, which means it belongs inside a control cabinet with the ingress protection of the cabinet doing the environmental work — it is not a field-mount drive.
