Frame, footprint, and what the wireman sees

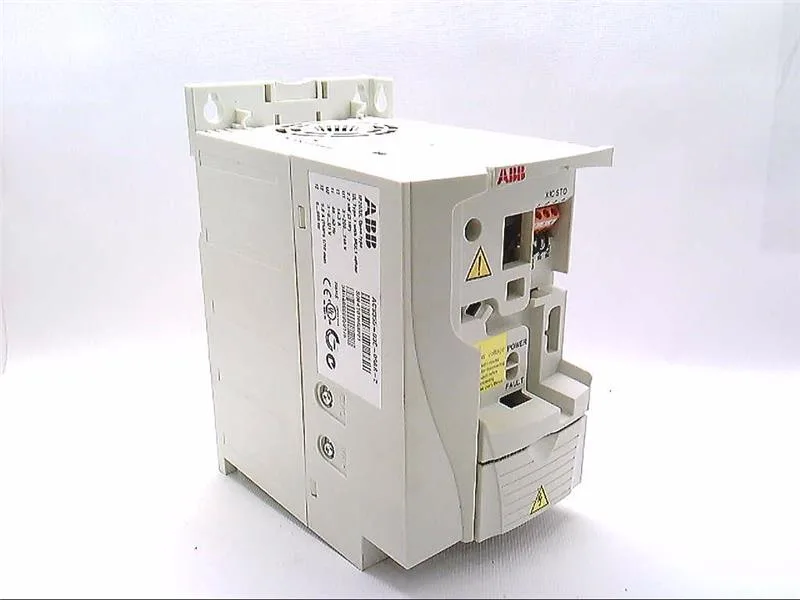

The ACS355-03E-09A8-2: Mechanically the drive sits in an R2 frame: 105 mm wide, 169 mm tall, 165 mm deep, with an IP20 open-type enclosure. That footprint is what defines the cabinet cutout and the clearance around the heat sink — IP20 here means finger-safe inside the panel, not a washdown rating, so the enclosure choice still has to carry the rest of the ingress protection. Module form-factor mounting (side-by-side / DIN-rail family pattern) is how it lands next to other ACS355 blocks; the wireman should still confirm the specific mount kit against the build sheet before drilling. Shipping weight on the listing is 3 kg. That number drives the parcel class for inbound freight and the bench-handling routine in receiving — it does not change the BOM decision, which is set by voltage class, frame, and power rating.
What the buyer should check before signing off
Three items decide fit before the BOM line is frozen: the 200…240 V 3-phase window matches the plant bus; the R2 footprint and IP20 open-type enclosure fit the cabinet layout; the estimated lead time of 1 - 10 working days fits the project schedule. If the voltage class is wrong, the right part is a different suffix.
