ABB ACS355-03E-12A5-4

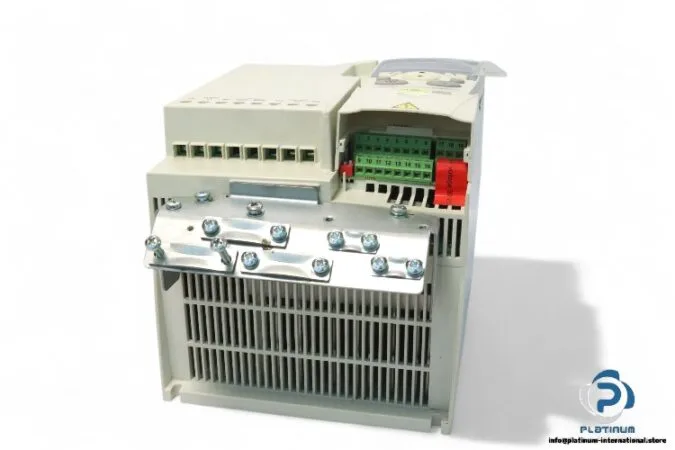

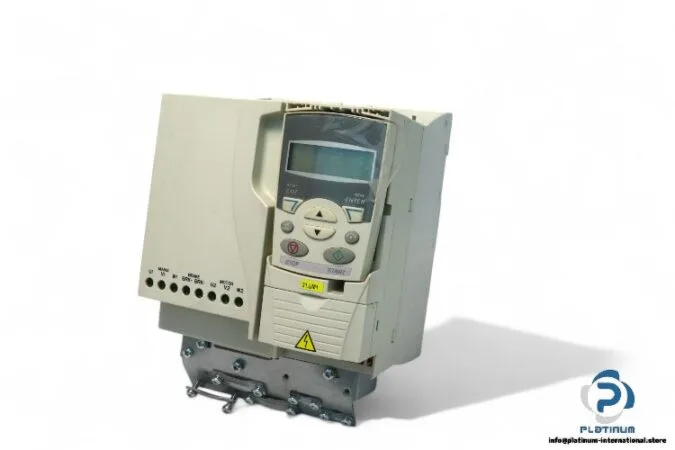

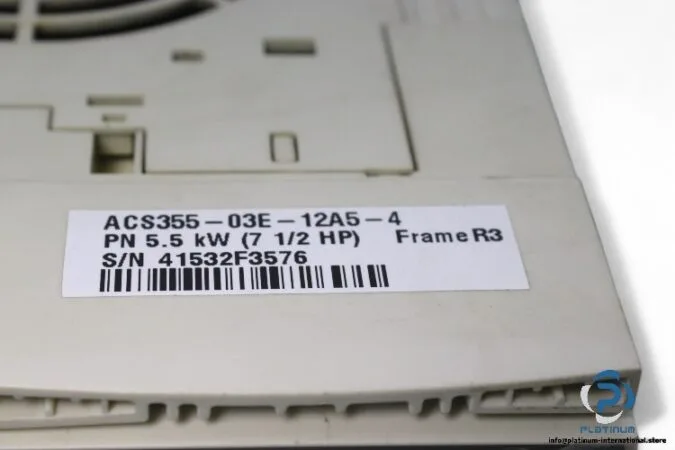

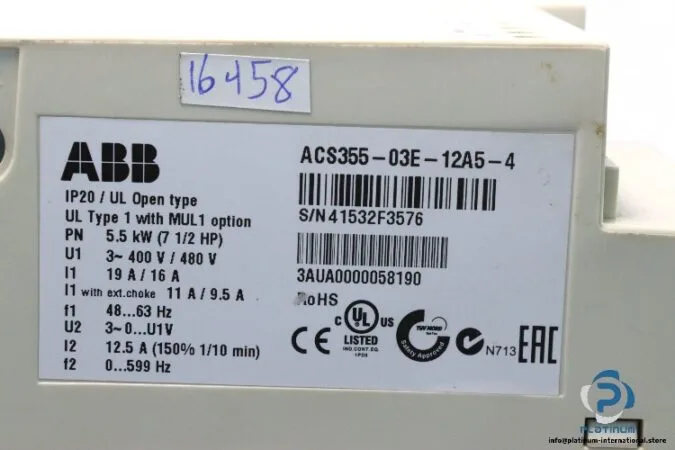

ABB ACS355-03E-12A5-4 Inverter Drive, 5.5 kW, 12.5 A

MPN ACS355-03E-12A5-4

ABB ACS355-03E-12A5-4 inverter drive, 3-phase 380–480 V input, 5.5 kW normal-use output at 12.5 A, IP20 open type, 50/60 Hz.

$531.50 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

ACS355-03E-12A5-4 specifications
ParameterValue
Product typeInverter Drive
Enclosure typeOpen
Input voltage380 ... 480 V
Output current12.5 A
Output power5.5 kW
Frequency50/60 Hz
Phases3-phase
IP ratingIP20
Weight2.75 kg
Temperature rating maximum40 °C

Product details

What the buyer is fitting

The ABB ACS355-03E-12A5-4 is a 3-phase inverter drive in the ACS355 family, sized for a 380 … 480 V supply at 50/60 Hz and rated 5.5 kW normal-use output at 12.5 A — the figure a panel builder should match to a 4-pole induction motor in the same frame, with normal-use meaning continuous duty rather than short-term peak. It is an IP20 open-type chassis with a 40 °C maximum ambient rating, so a cabinet with ventilation headroom is where this drive belongs — sealed enclosures need a derating check, not a hopeful install.

I/O count the integrator plans against

On the control side the drive exposes 2 analog inputs, 1 analog output, 5 digital inputs and 1 digital output, which sets the budget for a typical sensor-and-rail-valve machine — anything above that needs an I/O extension card, not a re-spec of this MPN.

Where this MPN sits in the ACS355-03E-4 line

The smaller ACS355-03E-01A2-4 (0.37 kW / 1.2 A) and the mid-frame ACS355-03E-15A6-4 bracket the 12A5-4 in this line — they share the 3-phase 380 … 480 V input class and the 03E EMC-filter-connected build, so a panel laid out for any of them accepts the others with wiring changes only.

Sourcing posture

MPN
ACS355-03E-12A5-4
