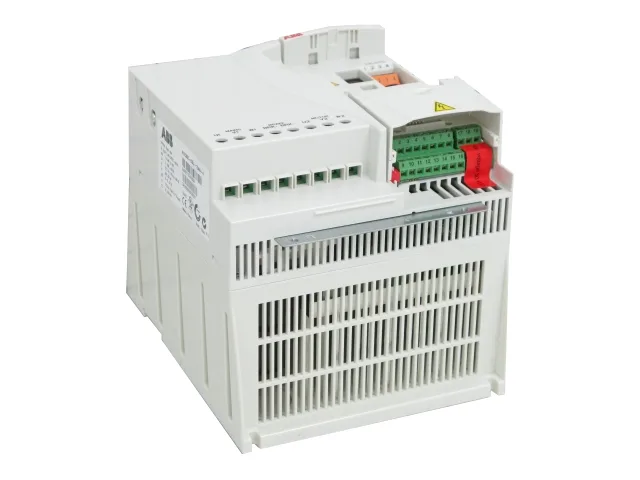

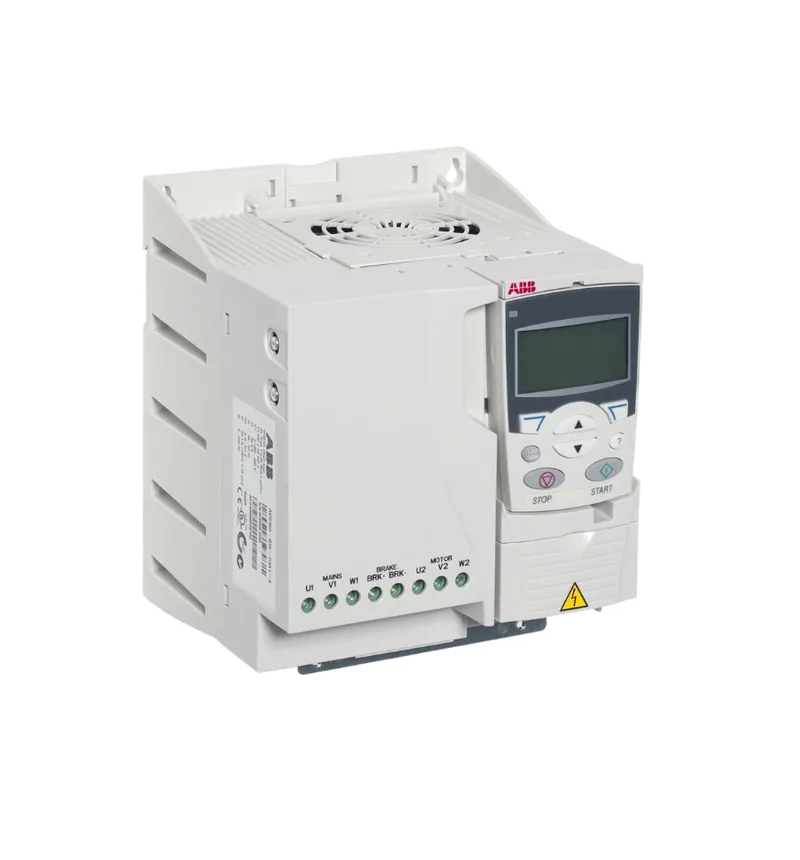

The ABB ACS355-03E-24A4-2 is a three-phase input drive built around a 200–240 V single-range supply window, which is the first thing to match against the panel feed before any wiring decision. It lives in an R3 frame sized 169 mm wide, 169 mm tall and 169 mm deep — a square footprint that simplifies cutout planning and lets the same panel pattern accept either wall- or DIN-mount orientations as the ACS355 family supports. Enclosure rating is IP20 Open Type, meaning the chassis itself offers finger-safe but no ingress protection — the cabinet has to carry the dust and moisture story, not the drive.
Where the ACS355 class lands on a line
The ACS355 sits in the general-purpose micro-drive tier used for small three-phase motor loads — conveyors, fans, pumps and mixers where a compact 200–240 V feed is already present. At R3 / 169 mm cubed it drops into a standard section of a motor-control centre or a stand-alone operator panel without forcing a re-cut when replacing an existing ACS355 unit of the same frame.
