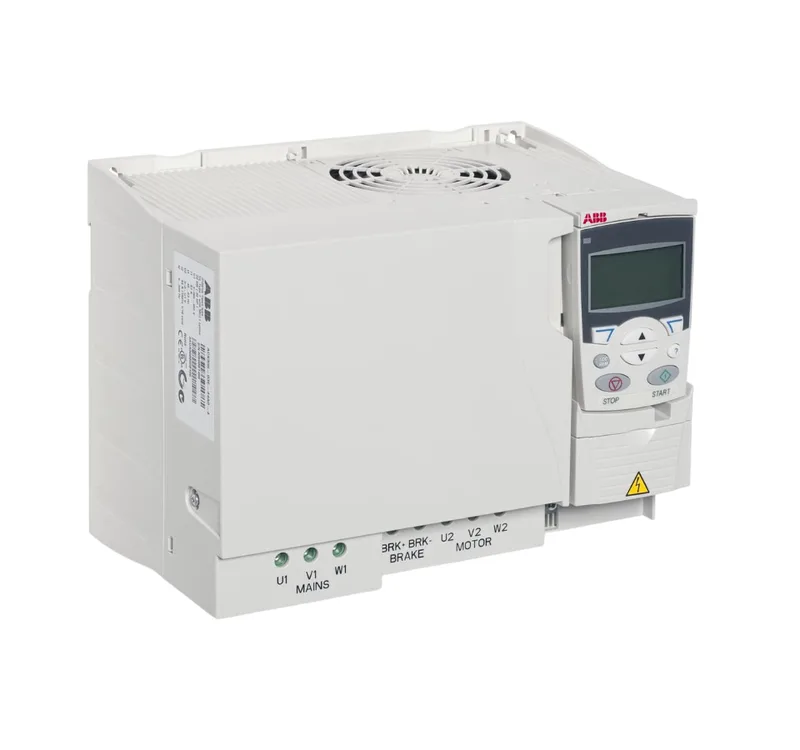

ABB ACS355-03E-46A2-2

ABB ACS355-03E-46A2-2 drive, 11 kW, 46.2 A, 200-240 V

MPN ACS355-03E-46A2-2

ABB ACS355 series machinery drive, 11 kW normal-use output at 46.2 A, 200–240 V three-phase 50/60 Hz input, R4 frame IP20 open-type module, 169 mm × 244 mm × 260 mm, 5.4 kg.

$1,643.00 – $2,016.15 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

ACS355-03E-46A2-2 specifications
ParameterValue
Input voltage200 ... 240 V
Output current46.2 A
Output power11 kW
Frequency50/60 Hz
Phases3-phase
IP ratingIP20
MountingModule
Width169 mm
Height244 mm
Weight5.4 kg
Frame sizeR4

Product details

The ABB ACS355-03E-46A2-2 is a machinery-class general-purpose drive from the ACS355 family, intended for cabinet building rather than wall mounting and shipped as an IP20 open-type module in an R4 frame. Supply side is fixed at 200–240 V three-phase 50/60 Hz, with EMC filtering on board — the 03E code in the part number is the family marker for 3-phase supply with the EMC filter connected at 50 Hz.

What the cabinet builder actually has to lay out

The R4 mechanical envelope is 169 mm wide × 244 mm high × 260 mm deep, so a standard 200 mm cabinet cutout with side clearance for airflow is the rough target; the depth is the dimension that bites you on back-plate work, not the width. Net mass is 5.4 kg against 6.5 kg shipping, which means the drive is comfortably a one-person lift onto a backplate — no panel-reinforcement conversation needed at this frame size. IP20 open type means the panel builder is responsible for the rest of the enclosure rating; this module will not survive a washdown room on its own and should not be specified as the outer skin of a floor-standing cabinet.

The rating that drives the BOM decision

On 200–240 V three-phase the 46.2 A continuous output is the figure a panel builder has to match against motor FLA, not the 11 kW nameplate. The input window is 200–240 V, so a plant on the 4-class input range cannot accept this code; a cabinet wired for higher-voltage three-phase needs the matching 4-class sibling, not this one.
