What landed on the BOM

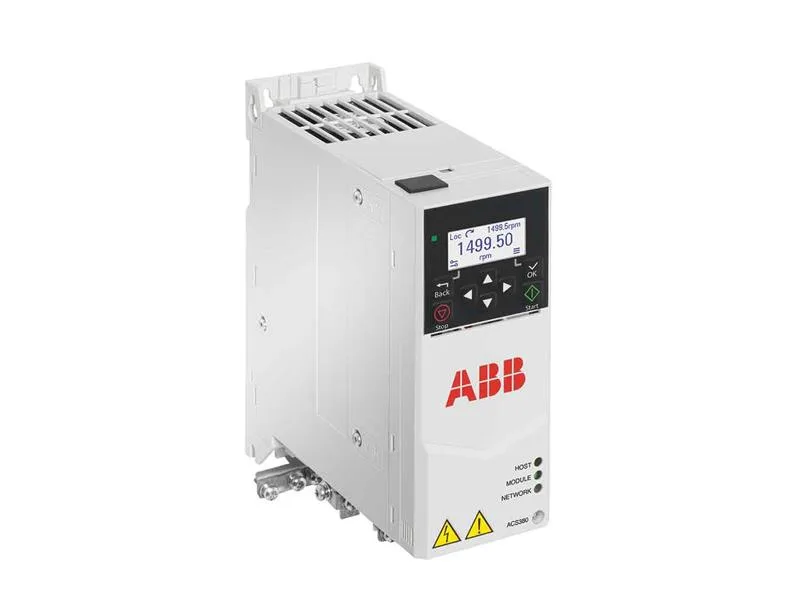

The ACS380-040S-02A6-4: Shipping weight is 1.81 kg, light enough for one-handed DIN-rail or panel mounting without a second pair of hands on the lifting side; cable glands and braking resistors are not included in that figure.
Class context: where an ACS380-040S fits
Drives in this class run small three-phase induction and permanent-magnet motors on conveyors, fans, pumps, and mixers. The 040S frame suits short motor cable runs; long pigtails to a remote motor raise reflected-wave dV/dt at the winding insulation, so plan the output reactor or dV/dt filter when the motor sits well away from the cabinet. Site note: ground the drive end of the motor cable shield at the cabinet gland and let the field end float — that single grounding decision is the difference between a clean analog feedback reading and a noisy one on the adjacent analog input card. Brake resistor sizing follows the vertical-load profile; horizontal conveyors can usually skip it.
