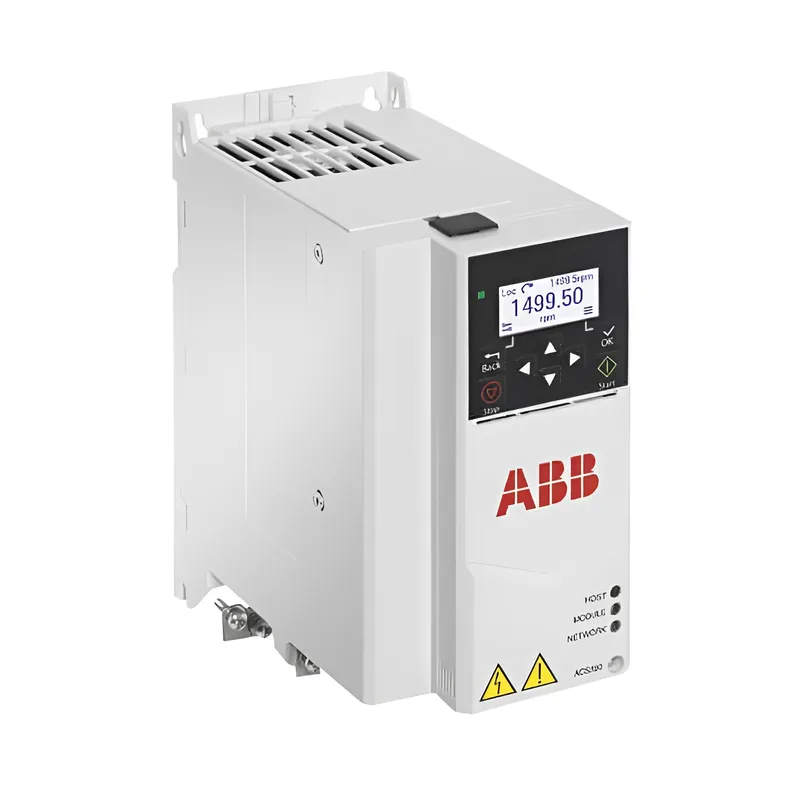

The ABB ACS380-040S-12A6-4 is a three-phase cabinet-mount drive from the ACS380 series, rated for 380–480 V input and 8.7 kV·A apparent output, in an R2 frame with IP20 protection. The R2 frame measures 95 mm wide by 223 mm tall by 176 mm deep, sized for a cabinet-building module enclosure. Onboard I/O provides 5 digital inputs and 2 digital outputs, plus 2 analog inputs and 1 analog output; the drive communicates over MODBUS or other bus systems.

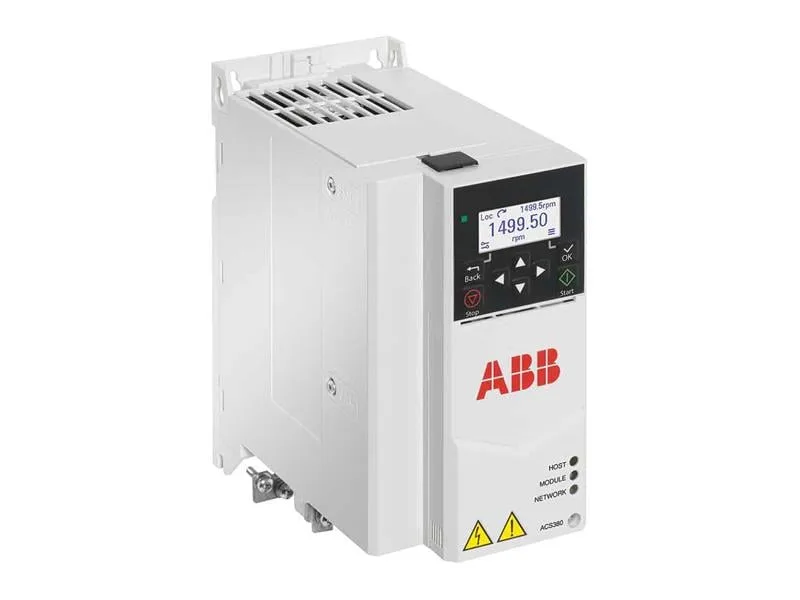

ABB ACS380-040S-12A6-4, 8.7 kVA VFD, IP20, R2 frame
MPNACS380-040S-12A6-4
ABB ACS380 series, ACS380-040S-12A6-4, three-phase cabinet-mount VFD, 380–480 V input, 8.7 kV·A apparent power, R2 frame, IP20, MODBUS.
$573.00 – $1,542.95Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Input voltage range | 380 ... 480 V |
| Number of phases | 3 |
| Frequency | 47.5 ... 63 Hz |
| Parameter | Value |
|---|---|
| Apparent power output | 8.7 kV·A |
| Efficiency class (IE) | IE2 |
| Standby power loss | 16 W |
| Parameter | Value |
|---|---|
| Frame size | R2 |
| NEMA enclosure type | Open Type |
| Degree of protection (IP) | IP20 |
| Mounting type | Module for cabinet building |
| Parameter | Value |
|---|---|
| Temperature rating (max.) | Maximum 50 °C |
Product details
MPN
ACS380-040S-12A6-4
