ABB ACS550-01-04A1-4 — AC Drives (VFD)

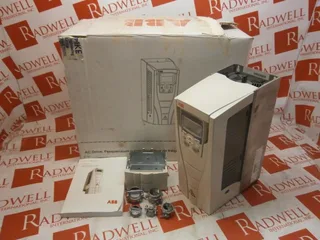

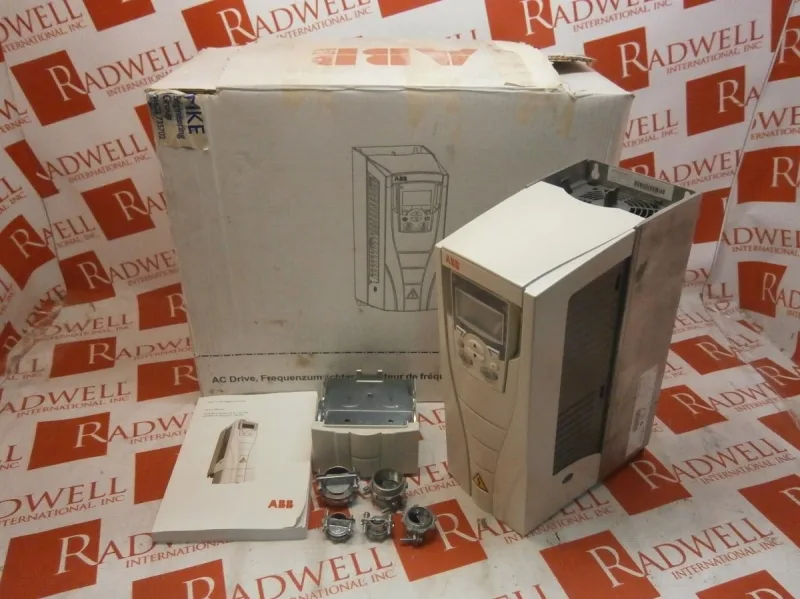

ABB ACS550-01-04A1-4 Motor Drive, 2.80 kgs

MPNACS550-01-04A1-4
End of Life

ABB ACS550 series motor drive, order code ACS550-01-04A1-4, listed at 2.80 kgs in the Drives / Motor Drives category.

$2,145.82Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ACS550-01-04A1-4 — Mechanical
ParameterValue
Weight2.80 kgs

Product details

What the line is

The ABB ACS550-01-04A1-4 sits in the ACS550 series of motor drives, classed under Drives / Motor Drives within the broader Motors & Motor Controls category. The headline spec the listing carries is a unit weight of 2.80 kgs — enough that one technician can shoulder it onto a DIN backplate, light enough that the panel does not need a reinforced sub-plate to carry it.

Application read for a VFD specifier

For an ACS550 frame, the load profile dictates the parameter set: constant-torque fans and pumps want the heavy-duty current ceiling, variable-torque conveyors and mixers can ride the lighter curve. EMC-wise, mount the drive close to the line entry so the input pigtail stays short — long line-side leads pull common-mode noise past the internal filter stage. On the motor side, keep cable length inside the drive's reflected-wave limit; on a 4 A frame like the -04A1-4 that ceiling is generous, but if a retrofit pushes past it, a dV/dt output filter is cheaper than re-winding a motor after a season of peak voltage spikes at the terminals.

Frequently asked questions

When sourcing the ACS550-01-04A1-4, is the ACS580-01-031A-2 a close functional second source?

The ACS580-01-031A-2 is the same Drives / Motor Drives class and is the natural successor-platform candidate, but the two are not a wiring-compatible drop-in: different current frame, different control panel lineage, and parameter set does not import 1:1. Use it as a second-source option only after re-specifying the frame, terminals, and commissioning macros.

MPN
ACS550-01-04A1-4
