What this code points to

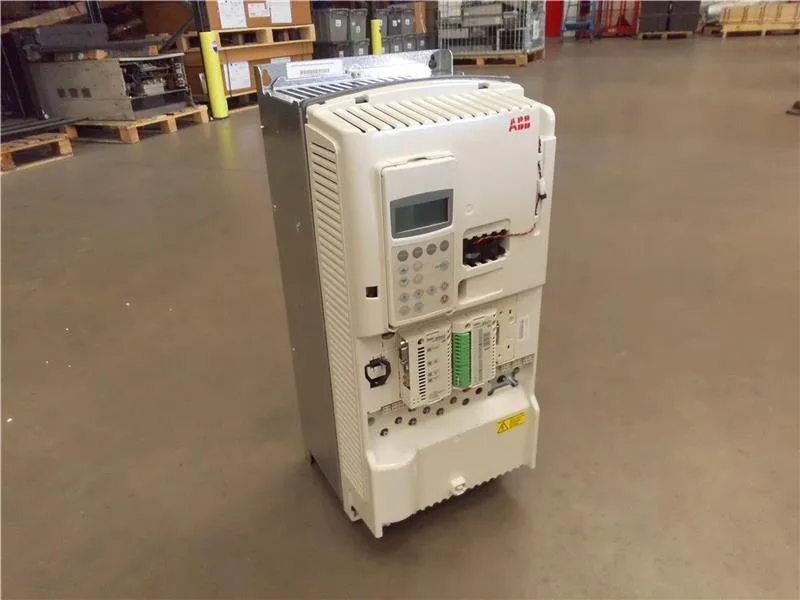

The ABB ACS800-04-0050-3+D150+E200+J400+K454+L502 is a configured ACS800-04 industrial AC drive — not a bare catalog line but the specific build carrying plus-code options +D150, +E200, +J400, +K454 and +L502, so the cabinet layout, I/O, and fieldbus options are part of the order string rather than a field change. The ACS800-04 family is ABB's wall-mount industrial drive platform used to run three-phase induction motors in process and material-handling cells. The frame ships at 31.99 kgs, which is the kind of mass that drives the panel-builder's lifting plan and the wall-bracing decision before the enclosure is even wired — a two-person lift and a verified anchor pattern are the minimum handling assumptions.
Commissioning shape, from the configured string
Because the order code already locks the option set, the commissioning check is verification rather than configuration: the +E200 / +J400 / +K454 / +L502 blocks typically denote control board, fieldbus, I/O extension and application macro choices, so the firmware image loaded at the factory should match the parameter sticker on the door — a mismatch there is the most common reason a new unit faults on first power-up.
