What it is and the panel footprint it claims

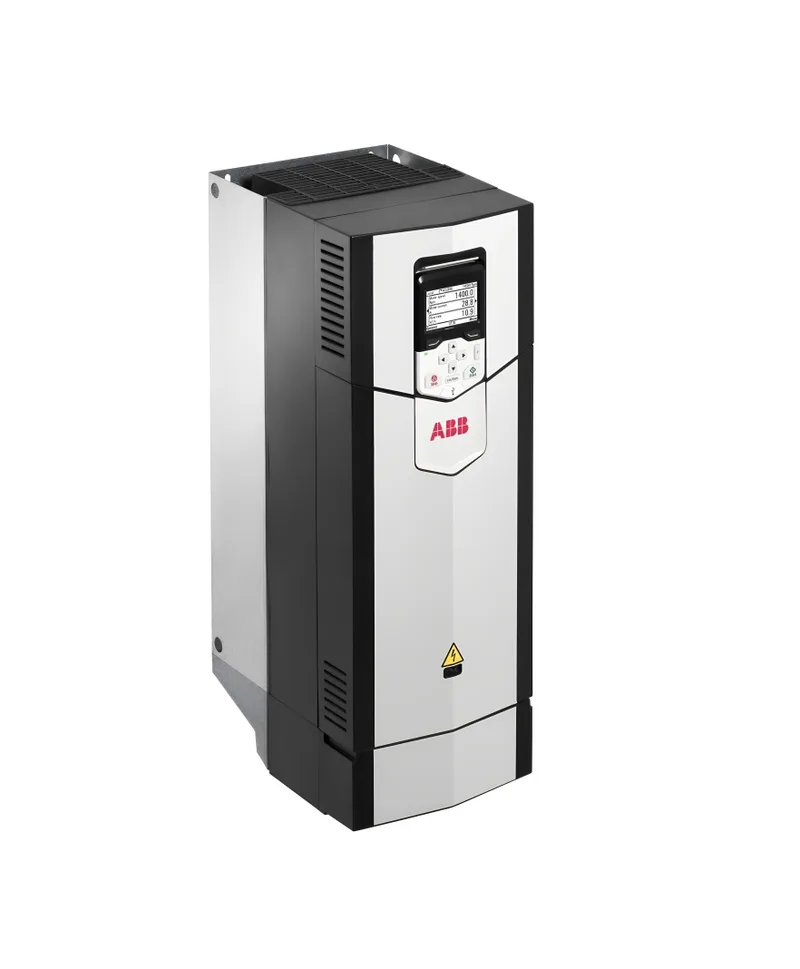

The ACS880-01-061A-3: Cabinet face is 203 mm wide by 580 mm tall with a 274 mm depth; total mass is 18.6 kg / 41.006 lb, so a single installer can handle it against the wall. Enclosure is IP21 / NEMA Type 1 — indoor, drip-resistant, not a washdown or dust-loaded room — and the mounting style is wall-fixed, which dictates the back-plate bracing and the cable entry direction before the wiring diagram is opened.
Input electrical envelope
Operational altitude is rated to 4000 m, which gives a high-altitude installation real headroom; in practice that envelope matters when a site sits well above sea level. Acoustic level is 64 dB(A), which is the number an operator-station layout reacts to — quiet enough for most control rooms but worth checking against local noise-exposure surveys if the drive sits on the same wall as a workstation.
Field handling and the small things that bite
Two CR2032 lithium coin cells (220 mAh, 3 V, 6 g combined) sit inside the unit — relevant for the maintenance record, RMA handling, and any site procedure around lithium battery transport, not a feature to be drawn from for control purposes. Shipping weight is 20 kg, so the packaging delta over the bare 18.6 kg is small; receiving can plan against the heavier figure and the install plan against the lighter one without surprise.
Sourcing posture
Supply is quoted to order against an RFQ, with a 1-10 working day lead-time window that is a planning range, not a confirmed ship date.
