ABB AF09-30-22-13 — Contactors

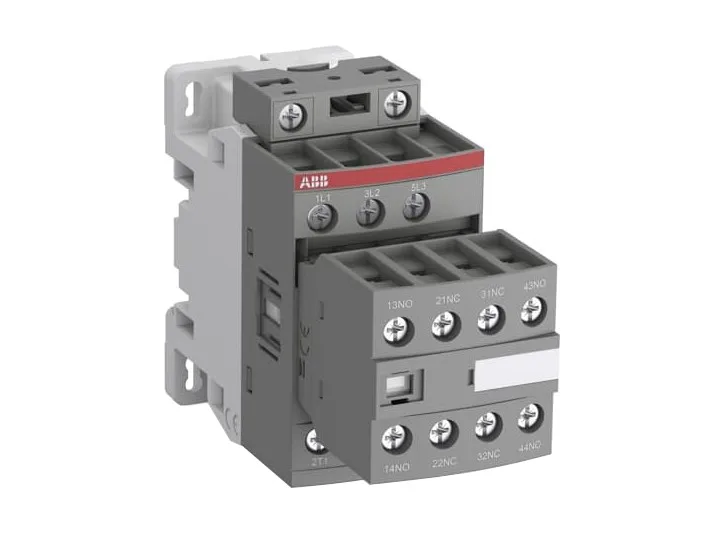

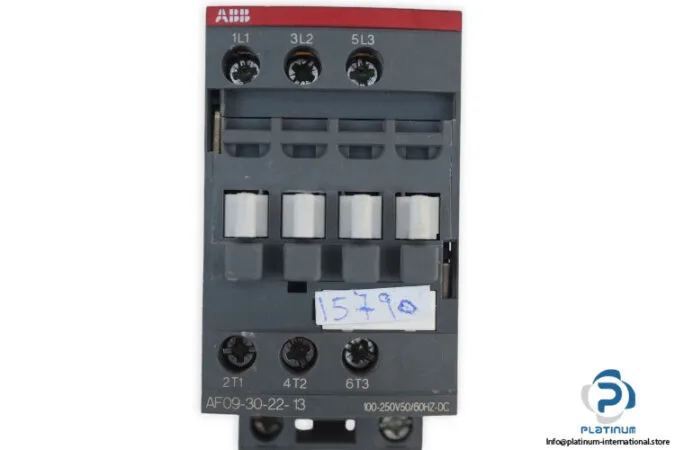

ABB AF09-30-22-13 Contactor, 4 kW AC-3, 100-250 V Coil

MPNAF09-30-22-13

ABB AF09 series, 3-pole contactor, 4 kW@400V AC-3, 25 A AC-1, 100-250 V AC/DC coil, 2 NO + 2 NC auxiliary contacts, screw terminals, 35 A thermal current, 690 V insulation voltage.

$32.50Ref. price · indicative, final on quote
ABB AF09-30-22-13 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

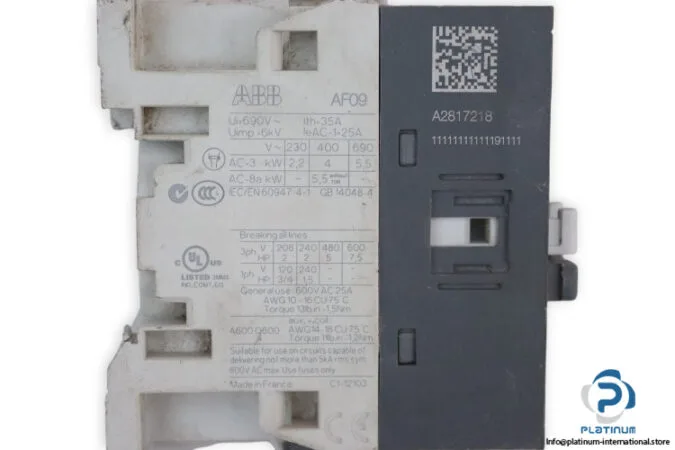

Specifications

AF09-30-22-13 key specifications
ParameterValue
TypeContactor
SeriesAF09
Terminal typeScrew Terminals
Type of productContactor
Coil voltage100-250 V,50/60HZ-DC
Insulation voltage ui690 V AC
Rated impulse with stand voltage uimp6 kV
Thermal current ith35 A
Rated current ie (AC-1)25 A
Power AC-34 kW@400 V AC
Power AC-8a5.5 kW@400 V AC
Poles3

All specifications

AF09-30-22-13 additional specifications
ParameterValue
Contact configuration2 Normally Closed, 2 Normally Open
Weight0,25 kg
Dimensions45 x 110.5 x 86 mm
StandardIEC/EN 60947-4-1 , GB 14048-4
ModelAF09-30-22-13
ConditionUsed
Shelf no.241020
General use600 V AC,25 A

Product details

Integrator's note: ABB AF09-30-22-13

The ABB AF09-30-22-13 is a 3-pole contactor from the AF09 series, rated for motor starting at 4 kW at 400 V AC under AC-3 duty. The coil accepts 100–250 V AC or DC, which simplifies panel wiring — one coil variant covers both supply types and eliminates the need for separate DC coils on mixed-voltage panels. Rated thermal current Ith is 35 A, with an AC-1 general-use rating of 25 A at 600 V AC. The contactor carries 2 normally open and 2 normally closed auxiliary contacts, enough for basic interlocking and feedback without an add-on block. Screw terminals are standard, and the unit complies with IEC/EN 60947-4-1 and GB 14048-4.

Frequently asked questions

What is the AC-3 motor rating of the AF09-30-22-13?

The AC-3 rating is 4 kW at 400 V AC, suitable for starting three-phase induction motors up to that load.

What coil voltage does the AF09-30-22-13 accept?

The coil is rated for 100–250 V AC or DC, 50/60 Hz. This wide-range electronic coil simplifies inventory and works on both AC and DC control circuits.

What standards does the AF09-30-22-13 comply with?

It complies with IEC/EN 60947-4-1 and GB 14048-4, covering contactors and motor-starters for industrial use.
