ABB AF140-30-11-13 — Contactors

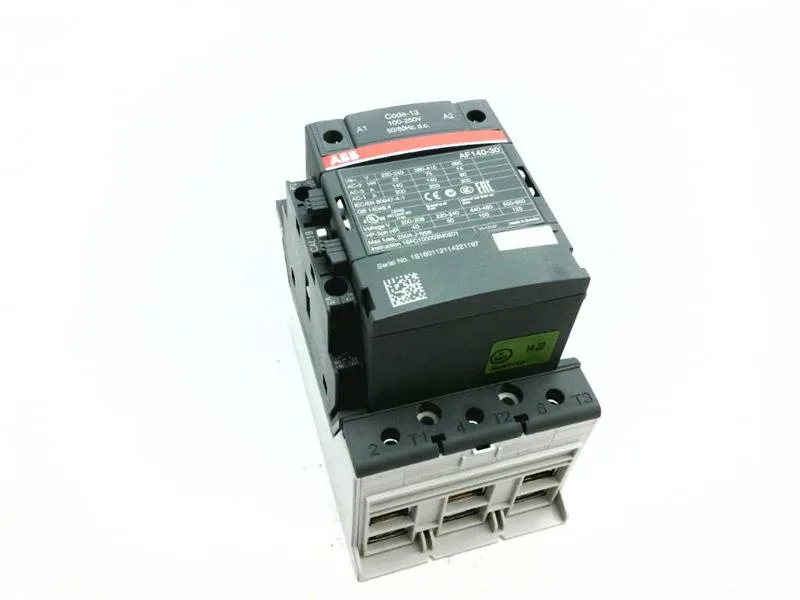

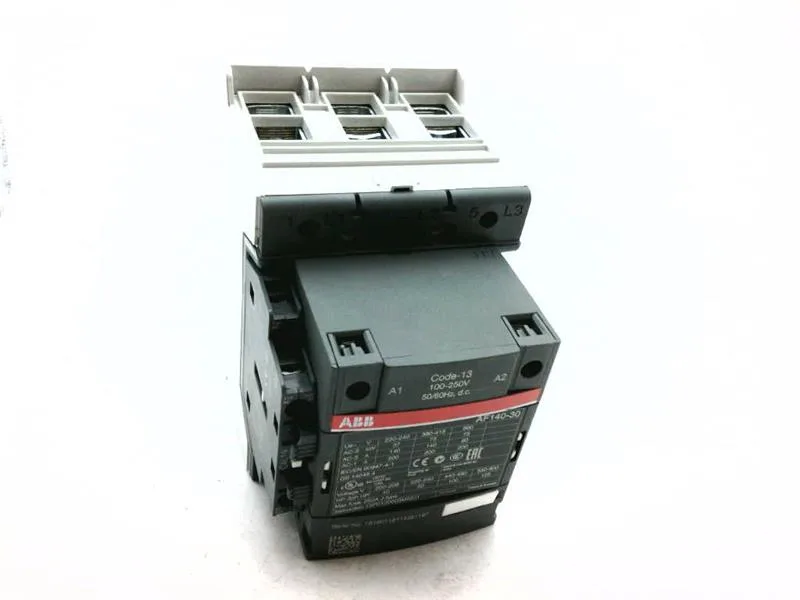

AF140-30-11-13 200A IEC Contactor, 100-250 VAC/VDC Coil, 3-P

MPNAF140-30-11-13

ABB AF-Line AF140-30-11-13, 200 Amp IEC contactor, 3-pole, 600 VAC rated, 100-250 VAC/VDC coil, with (1) N.O. and (1) N.C. auxiliary contact block.

$642.07Ref. price · indicative, final on quote
ABB AF140-30-11-13 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

AF140-30-11-13 — Specifications
ParameterValue
Amps200
TypeContactor
Poles3
Volts AC600
Volts AC control range100 - 250

Product details

What this contactor delivers on a 200 A line

The ABB AF140-30-11-13 is a 200 A, 3-pole IEC contactor rated for 600 VAC switching, with a 100-250 VAC/VDC coil. That 200 A rating is the AC-1 resistive load curve — the figure that governs continuous current through the main poles in a panel. For motor loads, derate per the AC-3 duty cycle; the 200 A frame carries the thermal capacity for high-inrush starts on pumps, compressors, or conveyor drives within the AF-Line's ratings.

The control coil spans 100-250 VAC/VDC, so it accepts either supply without a separate coil-change kit — one less line item on the BOM. Built-in 1 N.O. + 1 N.C. auxiliary contact block covers basic status feedback and interlocking without an add-on module. On a DIN-rail panel, the AF140 frame's footprint is sized for the 200 A pole spacing; plan for 35 mm DIN rail and maintain bend radius for the incoming 600 VAC power cables.

Frequently asked questions

What is the rated continuous current of this contactor?

The AF140-30-11-13 is rated for 200 A (AC-1 resistive load) at 600 VAC. For motor starting (AC-3 duty), consult the derating curve for your specific load type.

What coil voltage range does this contactor accept?

The coil accepts 100-250 VAC/VDC, so it works on common control voltages without needing a separate coil change.

Does this contactor come with built-in auxiliary contacts?

Yes, it includes one normally open and one normally closed auxiliary contact as standard, built into the AF140 frame.
