ABB AF146-30-11B-13

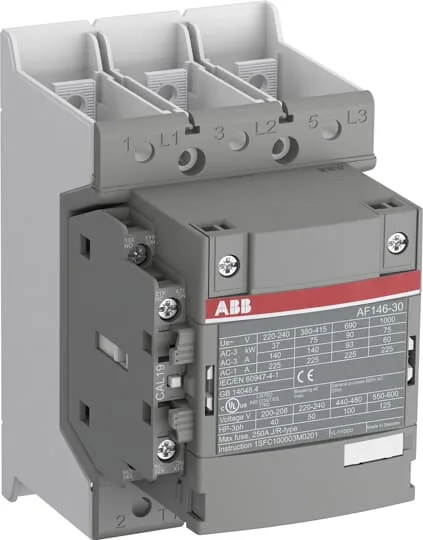

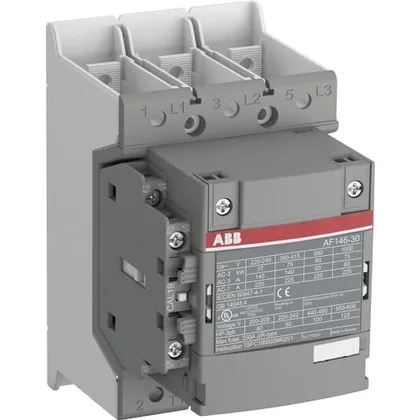

ABB AF146-30-11B-13 3-Pole Contactor, 130 A, 100-250 VAC/DC

MPN AF146-30-11B-13

ABB AF146-30-11B-13, 3-pole contactor, 130 A, 100-250 VAC/DC coil, bar connection rated 225 A, current lifecycle.

$794.80 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AF146-30-11B-13 specifications
ParameterValue
Weight0.59 kgs

Product details

The ABB AF146-30-11B-13 is a 3-pole contactor rated for 130 A continuous current, with a 100-250 VAC/DC coil. The bar connection is rated to 225 A, meaning the power path through the main poles can handle intermittent or short-time high currents up to that level without thermal damage — relevant when the contactor backs a motor start or a high-inrush load where the steady-state is lower but the transient spike needs headroom.

Coil and control circuit

The 100-250 VAC/DC coil accepts a wide control voltage range, covering common panel supplies (110 VAC, 220 VAC, 24 VDC through 250 VDC) without needing a separate coil variant. This simplifies BOM management when the same contactor must work across multiple control voltages in a facility.

Sourcing and lifecycle

The lifecycle stage is current, so ABB continues to manufacture and support this order code. For BOM-line commitment, the part is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

MPN
AF146-30-11B-13
