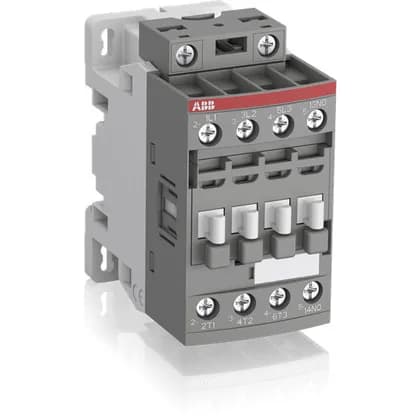

The AF16-30-01-11 is a 3-pole non-reversing contactor rated 30 A continuous, with a breaking capacity of 250 A at 440 V. For motor duty, it handles 15 HP at 550-600 VAC — that's the figure that tells you whether it fits the motor nameplate.
Wide-range coil simplifies panel wiring
Coil accepts 24-60 VAC and 20-60 VDC, so one part covers mixed control-voltage panels without separate coil variants. The electronic coil interface on the AF series draws low inrush and holds in without a separate economizer circuit. One NC auxiliary contact is built in — enough for a feedback signal to the PLC or a mechanical interlock in a forward-only circuit.
Current production — sourced per RFQ
Lifecycle status is marked 'current' — ABB still manufactures this AF16 series contactor.
