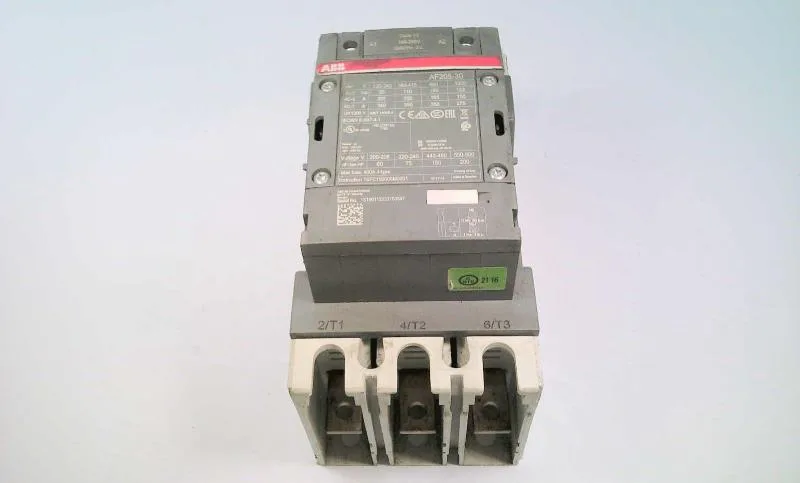

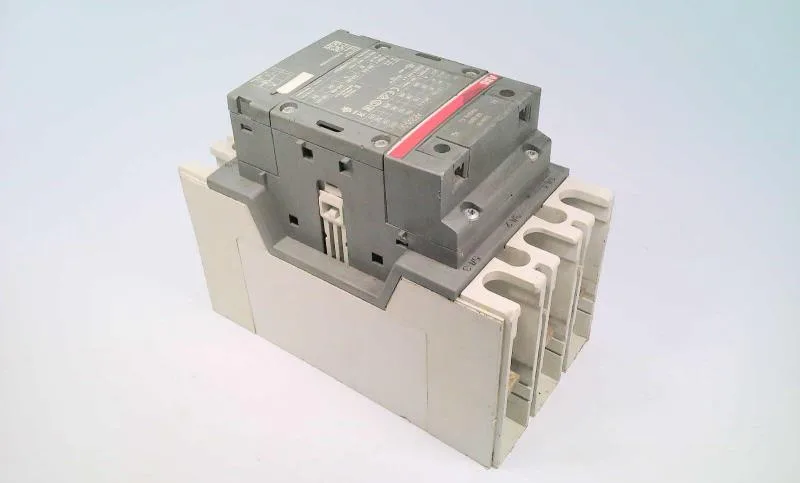

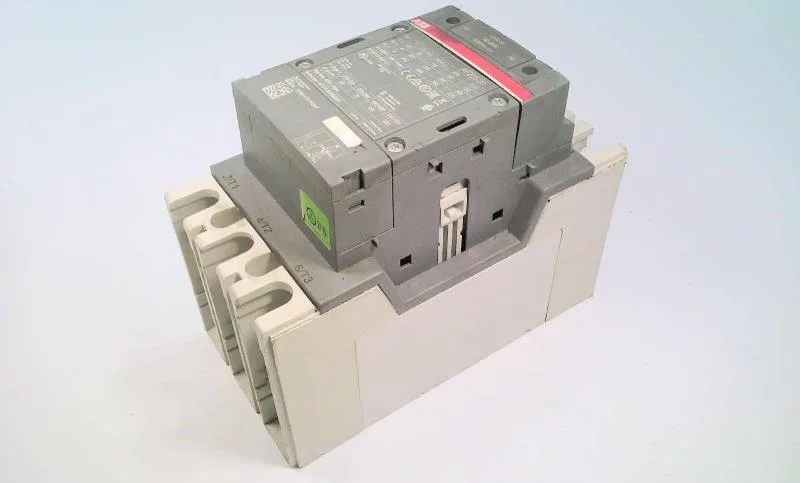

ABB AF205-30-00-13 Non-Reversing Contactor, 192A

MPNAF205-30-00-13

ABB, AF series, Non-Reversing Contactor, 3-pole, 192 A rated, order code AF205-30-00-13.

$1,011.92Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

AF205-30-00-13 — Specifications
ParameterValue
TypeNon-Reversing

Product details

The ABB AF205-30-00-13 is a 3-pole non-reversing contactor rated for 192 A. It's a straight-ahead, no-frills power switching block — no reversing interlocks, no extra auxiliaries built in. That 192 A rating is the AC-3 duty class for motor loads, so it'll handle starting and stopping a pump or conveyor motor up to that current draw. Out here in the grease, that's the number that matters when you're sizing for a 90 kW induction motor on 400 V three-phase.

This is a non-reversing type — single direction, no electrical or mechanical interlock for forward/reverse. If your application needs motor reversing, you'll need two of these contactors plus a mechanical interlock kit; the AF205-30-00-13 chassis accepts the standard ABB AF-series interlock. The contactor's 3-pole design handles three-phase loads straight through, with the main power terminals rated for the full 192 A.

Frequently asked questions

Where can I buy the AF205-30-00-13 and get a price?

This part is sourced and quoted to order against an RFQ through our independent distribution network. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What does the Non-Reversing type mean on this contactor?

Non-Reversing means the contactor switches power in one direction only — no built-in interlock for forward/reverse motor operation. For reversing duty, you'd pair two of these with a mechanical interlock from the AF series.

What is the rated current of the AF205-30-00-13?

The contactor is rated for 192 A in AC-3 duty class, which covers starting and stopping squirrel-cage induction motors up to that current. That's roughly a 90 kW motor at 400 V three-phase.
