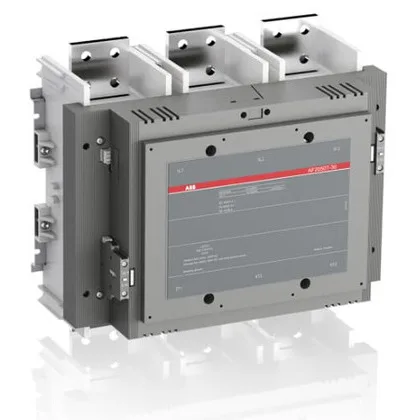

ABB AF2050-30-22RT-70

AF2050-30-22RT-70 IEC Contactor, 2050A, 1000VAC, 3-Pole

MPN AF2050-30-22RT-70

ABB IEC Contactor, AF2050-30-22RT-70, 2050A, 1000VAC, 3-Pole, 100-250V AC/DC Coil, 2NO/2NC Auxiliary Contacts.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AF2050-30-22RT-70 specifications
ParameterValue
Product typeIEC Contactor
Current2050 A
Poles3

Product details

The ABB AF2050-30-22RT-70 is a 3-pole IEC contactor rated for 2050 A continuous at 1000 VAC. The coil accepts 100-250 V AC/DC, and the built-in auxiliary contacts are 2 normally open and 2 normally closed. This is a large-frame contactor sized for high-current motor loads, power distribution, or heavy industrial switching — think main line feeders, large compressors, or 1000+ amp bus transfers where a standard 600 V block won't hold.

2050 A is the continuous thermal current (Ith) — the contactor can carry that current indefinitely in free air without exceeding its temperature rise limit. For motor duty (AC-3), the rating will be lower; the 2050 A figure tells you the contactor is built for the 2000 A class, not a 400 A frame shoehorned into a big enclosure. The 1000 VAC rating covers 400 V, 480 V, 600 V, and 690 V systems with margin — no voltage derating concern on standard industrial networks. The 100-250 V AC/DC coil range means the same coil works on 120 V or 240 V control circuits without a tap change, and DC control is supported across the same voltage window.

Deployment context

This is a bolted-frame contactor — no DIN-rail clip at this size. It mounts on a backplate or chassis in a switchgear lineup or motor control center. The 2NO/2NC auxiliary contacts are built in, saving a side-mount add-on for basic interlocking or status feedback. The 100-250 V AC/DC coil simplifies panel wiring when the control transformer is 120 V or 240 V; just confirm the coil draw against your control power supply rating.

MPN
AF2050-30-22RT-70
