ABB AF26-30-00-14

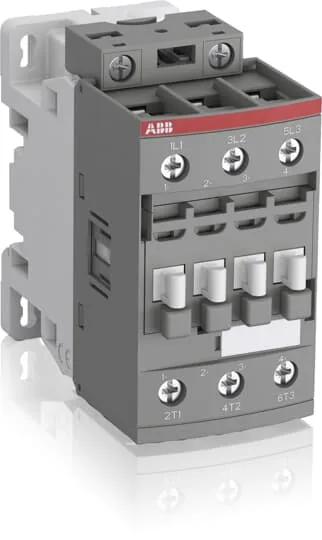

AF26-30-00-14 ABB Contactor, 45A, 600V, 3-Pole, Current Life

MPN AF26-30-00-14

ABB AF26-30-00-14, IEC contactor, 45 A, 600 VAC rated, 3-pole, 250-500 VAC/VDC coil, AF26 frame, no auxiliary contacts.

$124.50 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AF26-30-00-14 specifications
ParameterValue
Product typeContactor
Current45 A
Poles3

Product details

The ABB AF26-30-00-14 is a 45 A, 3-pole IEC contactor rated for 600 VAC, with a dual-voltage coil accepting 250–500 VAC or VDC. Part of the AF-line series on the AF26 frame, it ships without standard auxiliary contacts — just the main poles. The 45 A rating at 600 VAC covers motor and resistive loads within that current envelope; the wide coil range simplifies panel wiring when the control voltage isn't fixed at a single value.

The 250–500 VAC/VDC coil means the same part works across 277 V, 347 V, 400 V, and 480 V control circuits without swapping coils — useful in panels with mixed control voltages. No auxiliary contact block is included; order one separately if feedback or interlocking is needed.

MPN
AF26-30-00-14
