ABB AF26-30-00-41

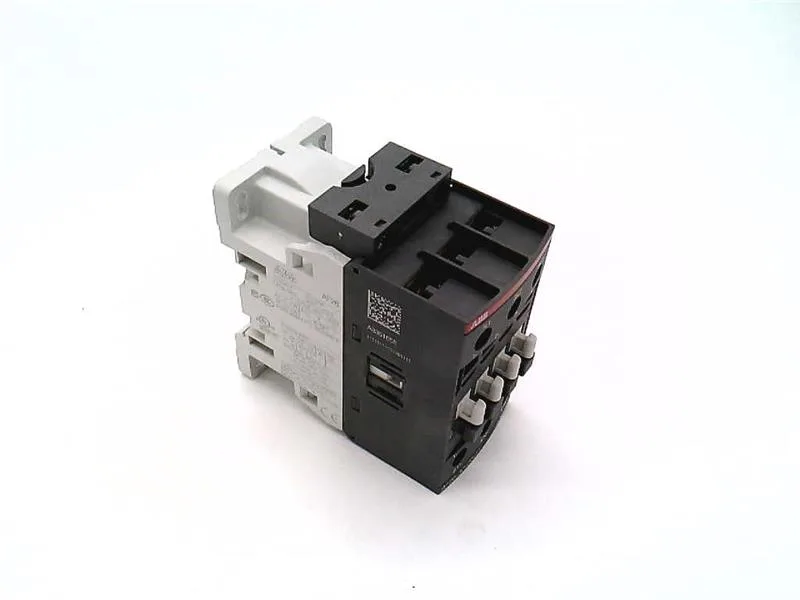

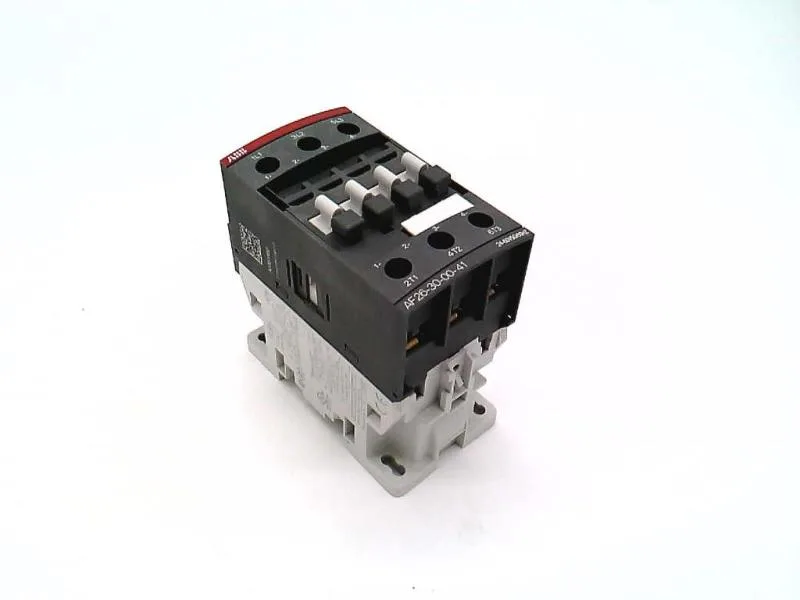

AF26-30-00-41 ABB Contactor, 45 A, 3-Pole, 60 V Coil

MPN AF26-30-00-41

ABB AF-Line Series, AF26 Frame, IEC Contactor, 45 Amp, 3-Pole, 600V Rated, 60 VAC/VDC Coil, AF26-30-00-41.

$167.28 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AF26-30-00-41 specifications
ParameterValue
Product typeContactor
Current45 A
Poles3

Product details

The ABB AF26-30-00-41 is a 3-pole IEC contactor on the AF26 frame, rated for 45 A continuous current and a 600 V maximum insulation voltage. The 45 A rating is the AC-1 thermal current (Ith) — the continuous resistive load it can carry without derating. For motor duty (AC-3), the actual switching current will be lower, typically around 18–22 A for a standard 3-phase induction motor, so size the contactor to the motor full-load amps, not the 45 A headline figure. The coil is 60 VAC/VDC, which means it pulls in on either supply type at that nominal voltage; the pickup threshold is typically around 48 V and dropout below 18 V, so verify your control voltage stays above the pickup minimum during brownout conditions.

Deployment context — panel integration

In a control panel, this contactor occupies roughly 45 mm of rail width. The 3-pole power terminals accept up to 16 mm² cable; the coil terminals are spring-cage for 0.2–2.5 mm².
