600 A IEC Contactor for Heavy Motor and Resistive Loads

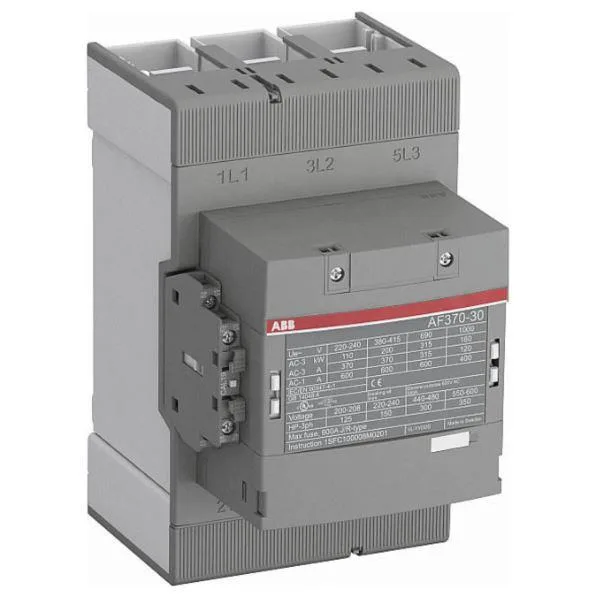

The ABB AF370-30-11-13 is a 600 A rated, 3-pole IEC contactor from the AF-Line series, built on the AF140 frame. It carries a 600 VAC rated insulation voltage and is controlled by a universal 100-250 VAC/VDC coil, meaning the same coil accepts both AC and DC control signals across that voltage window without needing a separate rectifier or coil-change for different control supplies. Rated at 600 A, this contactor is sized for heavy motor loads, large resistive heating banks, or capacitor switching in industrial power distribution panels. The 3-pole configuration switches three-phase circuits; the built-in (1) N.O. and (1) N.C. auxiliary contact block provides feedback to the PLC or control system without requiring a separate add-on module.
Coil Versatility and Control Circuit Integration
The 100-250 VAC/VDC control range is a defining feature of the AF-Line series. It eliminates the need to specify a separate coil variant for 110 VAC versus 220 VAC or 125 VDC control systems — one part number covers the full range. The electronic coil interface also provides a wide pickup and dropout voltage tolerance, reducing nuisance dropouts on sagging control buses. The auxiliary contact block is factory-integrated, saving DIN rail space compared to a separate auxiliary contactor. Verify the control transformer sizing: the inrush VA draw at 100 VAC is higher than at 250 VAC; the datasheet's VA curve governs the transformer rating for a given control voltage.
