ABB AF38-30-11-13 — Contactors

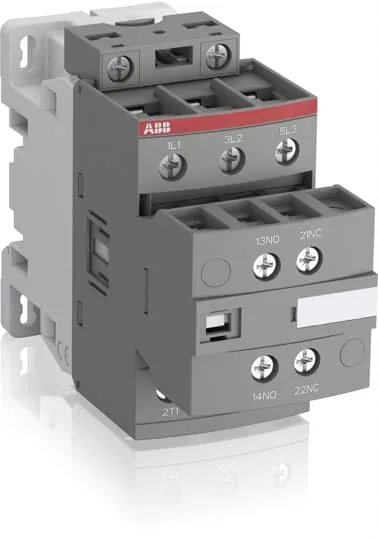

ABB AF38-30-11-13 AF38 Contactor, 50 A, 3 Pole, 690 VAC

MPNAF38-30-11-13

ABB AF38 series, 3-pole contactor, 50 A, 690 VAC, 100-250 VAC coil, panel mount.

$193.95Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

AF38-30-11-13 — Specifications
ParameterValue
Amps50
Poles3
MountingPanel
Volts AC690
Family (Style)AF
Volts AC control range100 - 250

Product details

The ABB AF38-30-11-13 is a 3-pole panel-mount contactor from the AF38 series, rated for 50 A at 690 VAC. The 50 A rating is the continuous thermal current (Ith) — the current the main poles can carry without exceeding temperature rise limits in open air. For motor switching, derate to the AC-3 duty current (typically around 37 A for this frame size) because starting inrush and switching frequency add thermal stress.

Panel-mounted — screws or bolts through the baseplate into a backplate or sub-panel. No DIN rail adapter on this variant; plan for a drilled and tapped mounting surface. The 3-pole block handles three-phase loads (motors, heaters, lighting banks) with one normally-open and one normally-closed auxiliary contact built in (the 11-13 suffix).

Frequently asked questions

What is AF38-30-11-13's rated current?

The contactor is rated for 50 A continuous at 690 VAC.

What voltage range does the coil accept?

The control circuit accepts 100-250 VAC, so it works on standard 110 V and 230 V control supplies without a transformer tap change.

Where can I buy AF38-30-11-13?

This part is sourced to order against an RFQ through independent distribution. Submit a request for current pricing and availability.

MPN
AF38-30-11-13
