ABB AF40-30-11-13

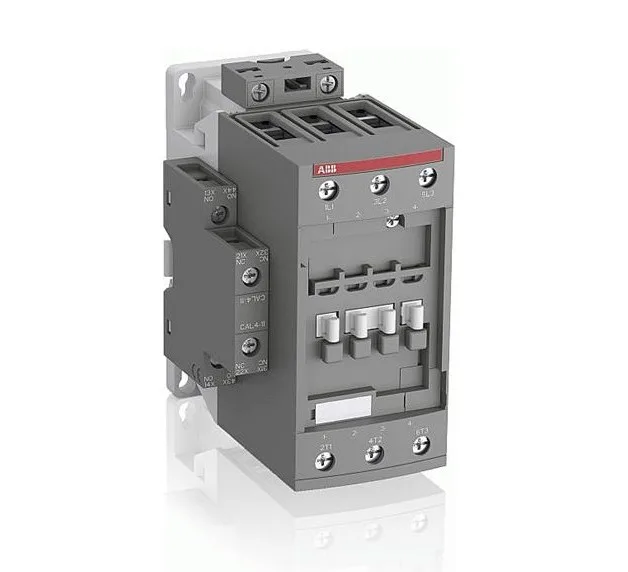

ABB AF40-30-11-13 Contactor, 60A, 100-250V Coil

MPN AF40-30-11-13

ABB AF-Line Series, AF40 frame, IEC contactor, 60A, 600VAC rated, 3-pole non-reversing, 100-250V AC/DC coil, with 1NO + 1NC auxiliary contact block.

$214.13 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

AF40-30-11-13 specifications
ParameterValue
Product typeNon-Reversing
Current60 A
Poles3

Product details

Rated for the heat, not the office

The ABB AF40-30-11-13 is a 60 A IEC contactor on a 3-pole non-reversing frame, rated 600 VAC and carrying a 100-250 V AC/DC coil. That 60 A rating is the AC-1 resistive load curve — for motor switching (AC-3 duty), expect the typical derate to around 30-37 A, which still covers a 15 kW four-pole induction motor on 400 V three-phase. The coil range is wide enough to handle both 110 V and 230 V control circuits without swapping coils, which simplifies spares stocking on a cement line or a conveyor bank.

Built-in auxiliaries save panel space

The AF40-30-11-13 ships with one normally open and one normally closed auxiliary contact block integrated into the frame. That covers basic status feedback (run signal from the NO, fault from the NC) without adding a side-mount stack. The AF-Line series uses a common coil driver across the range, so the pickup and dropout characteristics are consistent from 9 A to 300 A — the 100-250 V coil holds at nominal and drops out reliably below about 75 V, which matters for brownout ride-through on a kiln preheater fan circuit.

MPN
AF40-30-11-13
