What the 90 A rating means for your panel

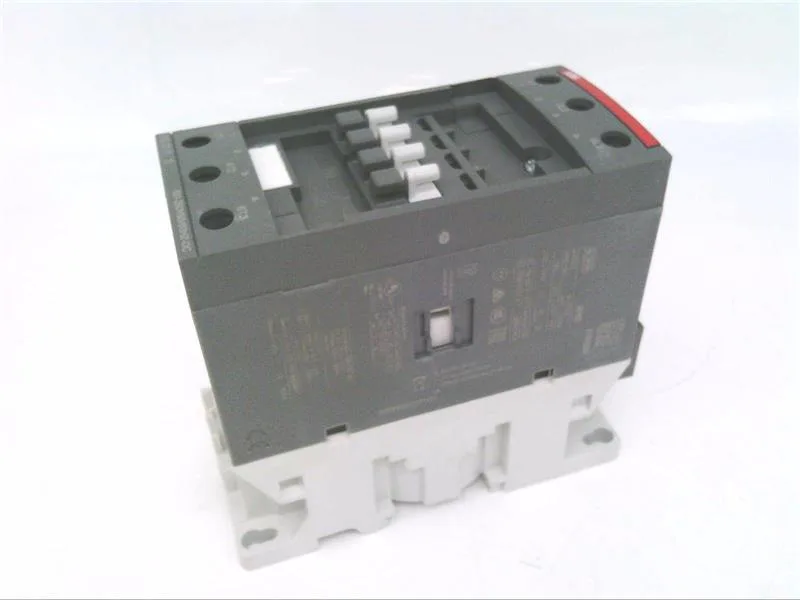

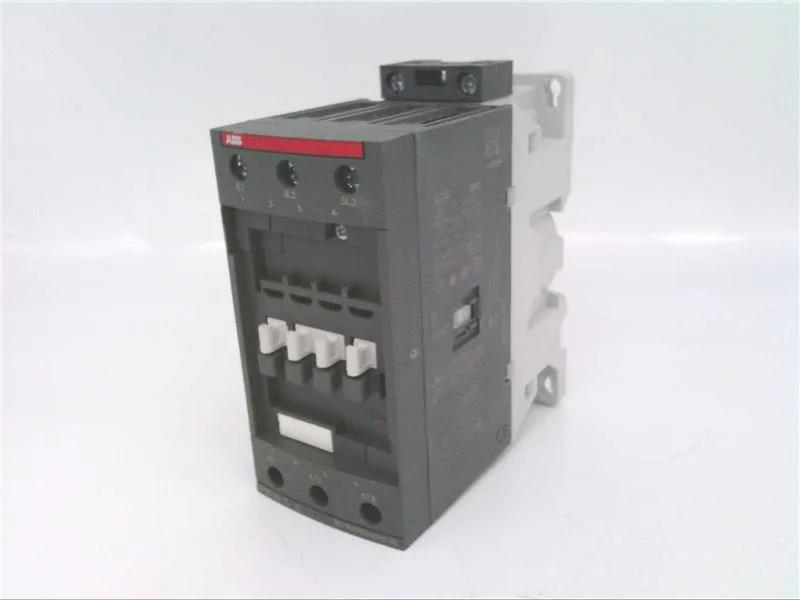

The AF65-30-11-13 is an ABB IEC contactor rated 90 A continuous, 3-pole, with a 100-250 V AC/DC coil. That 90 A figure is the AC-1 thermal current (resistive load); for motor duty (AC-3) the contactor typically switches a lower current — check the motor FLA against the manufacturer's AC-3 derating table for the specific voltage. The coil accepts both AC and DC control signals across a wide 100-250 V range, which simplifies panel wiring when the control transformer or DC supply sits at 120 V, 208 V, or 240 V nominal.
Deployment context
Snap-on DIN rail mount for standard 35 mm rail in control panels. The AF40 frame footprint matches ABB's common panel layout; the 1NO+1NC aux block covers basic feedback or interlock wiring without an add-on module.
