Contactor selection note

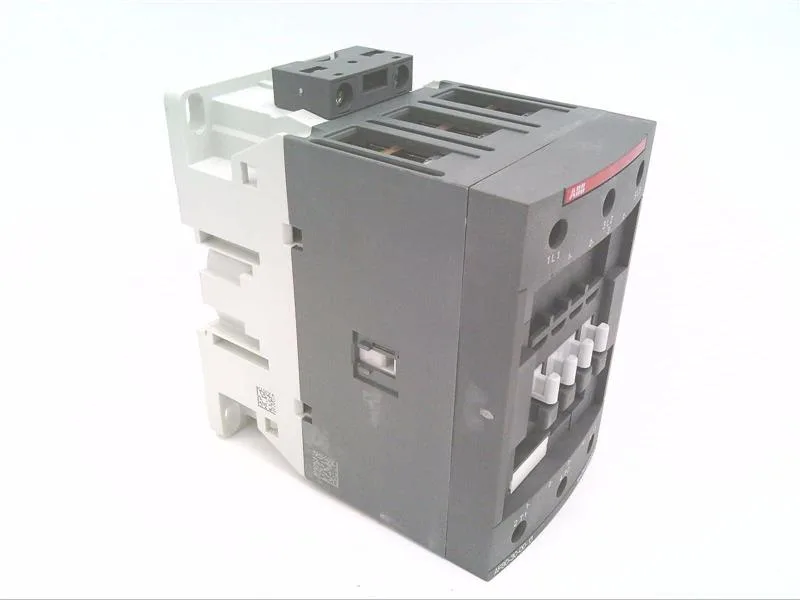

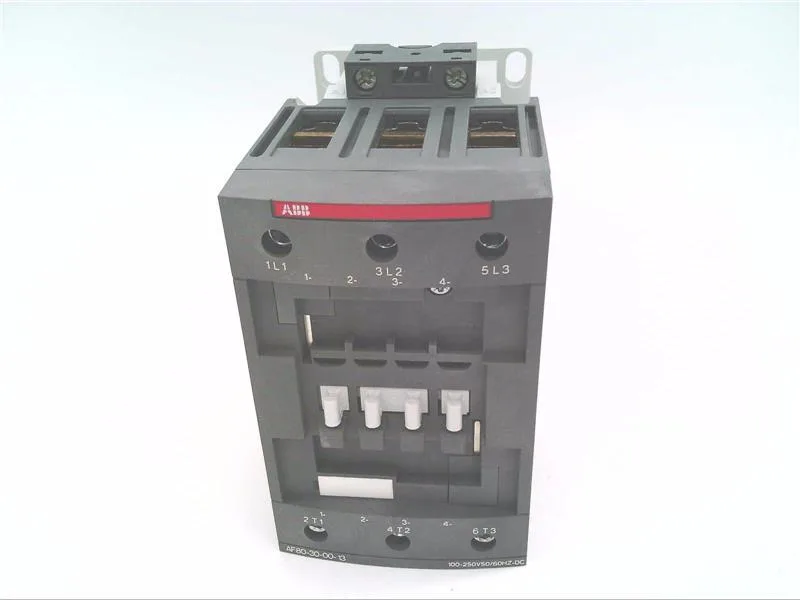

The ABB AF80-30-00-13 is a non-reversing, 3-pole contactor rated at 80 A, with a dual-rated coil accepting 100-250 VAC/DC. The '13' suffix indicates one normally-open and one normally-closed auxiliary contact integrated on the front. This is a standard-duty contactor for switching motor loads, resistive heaters, and other inductive or resistive circuits within its rated current envelope.
Panel integration
The 80 A rating typically requires a 35 mm wide contactor footprint; verify the physical dimensions against your enclosure's fill factor and gland-plate layout before committing the panel layout. The coil draws at the listed VA/W holding power — factor that into the 24 VDC or 110 VAC control transformer sizing if the panel has multiple contactors in the same coil voltage group.
