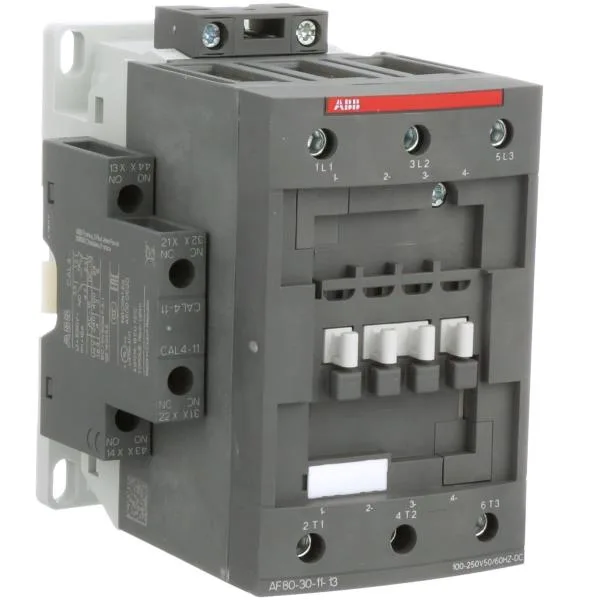

The ABB AF80-30-11-13 is a 3-pole IEC contactor rated 125 A at 600 V AC, with a coil control range of 100-250 VAC/DC. That 125 A figure is the AC-1 (resistive) rating — for motor starting (AC-3) the current rating will be lower, so size the contactor against the actual load curve, not the headline number. The integrated (1) N.O. and (1) N.C. auxiliary contact block covers basic feedback and interlocking without an add-on.
Coil range spans both AC and DC control
The 100-250 VAC/DC coil means the same part works on a 120 V or 230 V control transformer and on a 125 V or 220 V DC battery-backed supply — no separate DC-rated coil variant needed. This is the AF line's wide-range coil design; it holds in down to about 70% of the minimum rated voltage, so brownout ride-through is better than a standard contactor.
