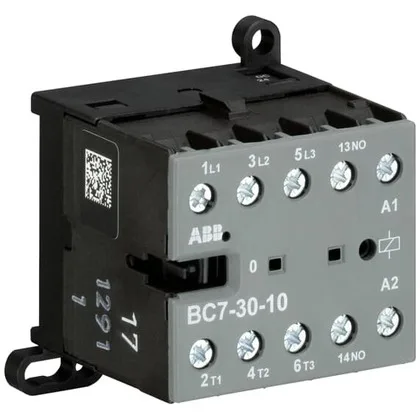

ABB BC7-30-10-07

Abb Bc7-30-10-07 Mini Contr.w/12vdc|Abb; Mini Contactor; Dc Operated; Coil Voltage: 12 Vdc; Contact Configuration: 3no (main) 1no (auxiliary); Phase: 3 Ph; Wattage: 3 Kw At 220/230/240 V, 5.5 Kw At 380/400/440 V, 4 Kw At 500 V, 3 Kw At 690 V; Connection: Screw Terminal; Size:52.5 Mm Width X 57.5 Mm Height X 46.5 Mm Depth; Operating Temperature: -25 To +55 Deg C; Tightening Torque: 7 In-lb; Maximum Breaking Capacity: 96 Amp At 400 V;motor Rating: 5 Hp At 480 V; Voltage Rating: 12 - 690 Vac (main)
