ABB CR-M230AC4L — General Purpose Relays

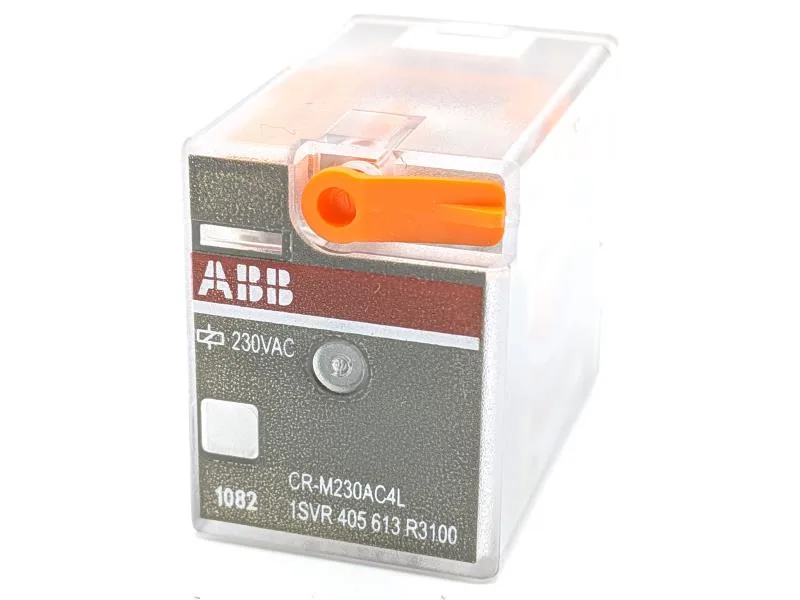

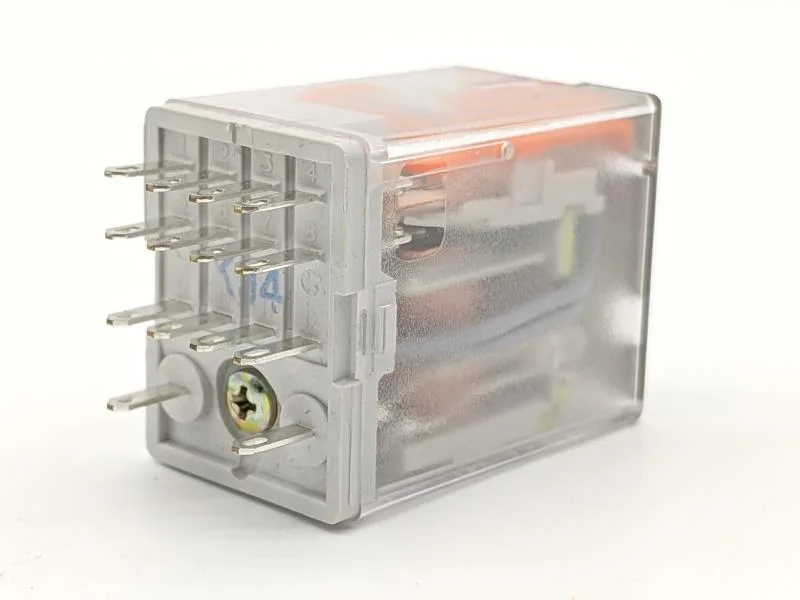

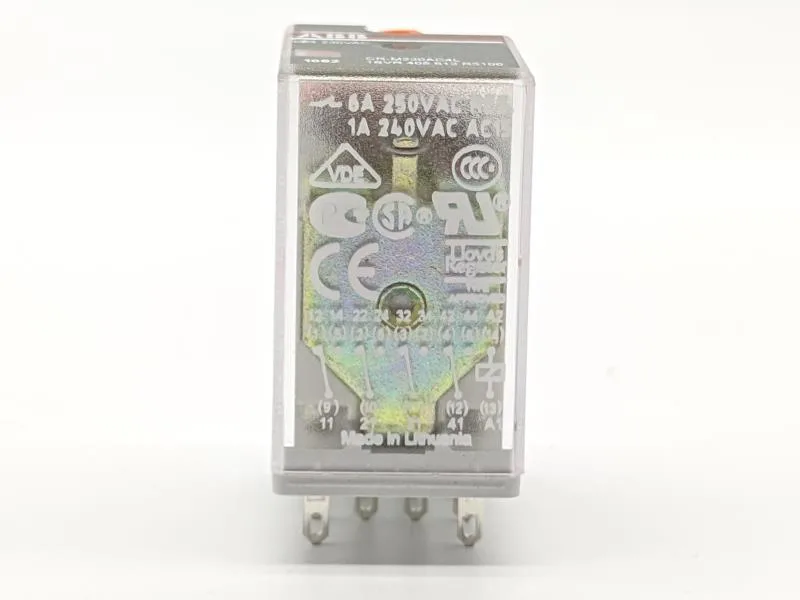

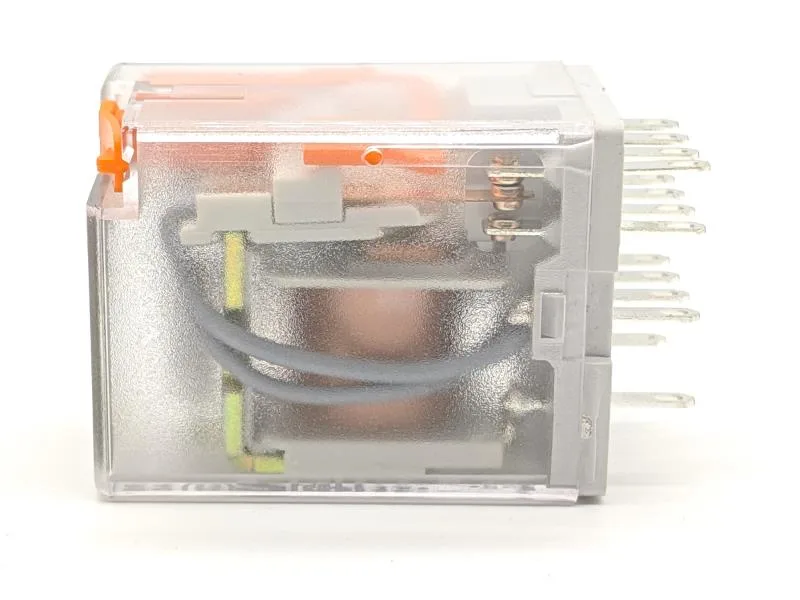

ABB CR-M230AC4L 4PDT Relay, 230 VAC Coil

MPNCR-M230AC4L

ABB CR-M230AC4L, 4PDT relay, 230 VAC coil, current lifecycle stage.

$6.77Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

CR-M230AC4L — Specifications
ParameterValue
Weight0.00 kgs

Product details

The CR-M230AC4L: The 4PDT contact arrangement gives you four independent switching channels, each with a normally-open and normally-closed set. That's enough to handle a mix of pilot lights, contactor coils, and PLC inputs from a single relay base.

The socket's screw terminals accept up to 2.5 mm² wire — strip 8 mm and torque to 0.5 Nm. Keep the coil suppression diode or RC snubber on the socket if you're driving the coil from a PLC output; inductive kickback from the 230 VAC coil can couple noise back into the control wiring.

Frequently asked questions

Where can I buy CR-M230AC4L and how do I get a price?

The CR-M230AC4L is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm price and lead time.

What is the closest pin-compatible alternative to CR-M230AC4L in this component family?

Within the CR-M series, the DC coil variants (e.g., CR-M024DC4L) share the same 4PDT contact arrangement and socket footprint. The main difference is the coil voltage and whether you need a free-wheel diode on the DC coil versus an RC snubber on the AC coil.

What compliance documentation does this brand provide for CR-M230AC4L?

ABB typically provides a declaration of conformity for the CR-M series covering the Low Voltage Directive and applicable EN/IEC standards. RoHS and REACH compliance declarations are available on request.
