ABB EHDB130C-1L — Contactors

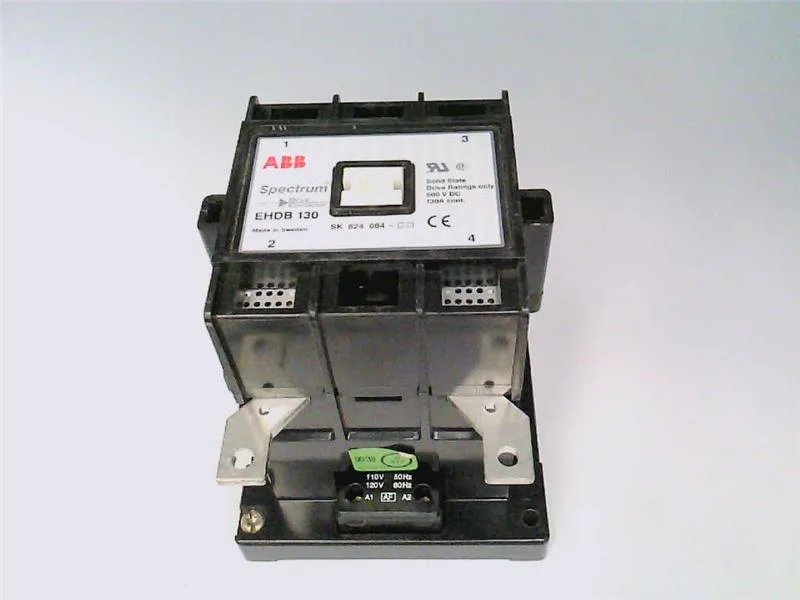

ABB EHDB130C-1L Contactor 130A 3P 110/120V 50/60Hz

MPNEHDB130C-1L

ABB EHDB130C-1L, 130A 3-pole electrical contactor, 110/120V 50/60Hz coil, 2NO/1NC auxiliary contacts, 2.89 kg.

$891.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

EHDB130C-1L — Specifications
ParameterValue
Weight2.89 kgs

Product details

The EHDB130C-1L: The 130 A rating is the AC-1 resistive load current; for motor duty (AC-3), expect a lower figure — the contactor's real-world motor capacity typically lands around 55–65 kW at 400 V. The 2NO/1NC aux block covers basic feedback and interlocking without needing a separate add-on.

Spring-cage or screw terminals on the power path accept up to 50 mm² cable. The 2NO/1NC aux contacts are rated for pilot-duty at 600 V — sufficient for PLC inputs and relay interposing in a motor control center.

Frequently asked questions

Where can I buy EHDB130C-1L and get a price?

The EHDB130C-1L is sourced to order against an RFQ through independent distribution channels. Submit an RFQ for current availability and pricing — confirmed at quote time.

Will EHDB130C-1L drop into a panel specified around A185-30?

The A185-30 is a 185 A frame contactor — larger footprint and higher current. The 130 A EHDB130C-1L will not directly interchange without rewiring and possibly a smaller backplate. The A185-30 is a step up in both current and physical size.

MPN
EHDB130C-1L
