ABB MS132-12

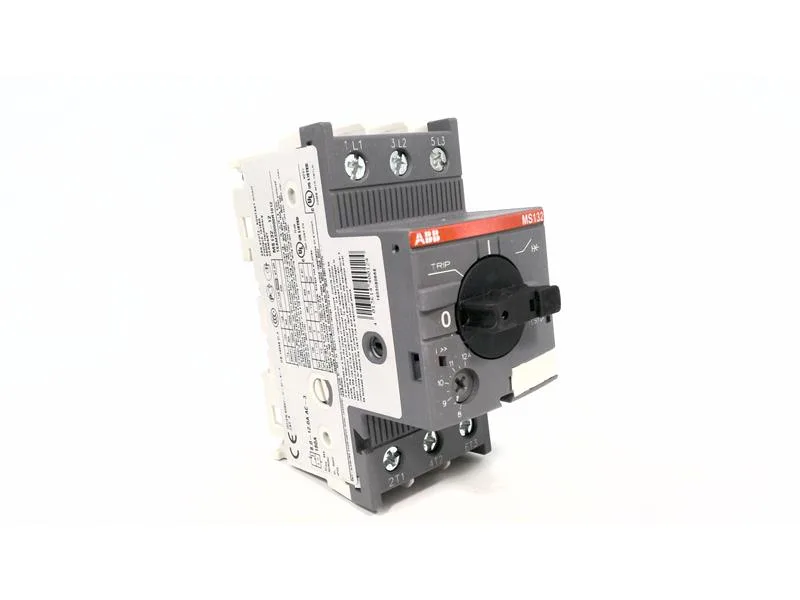

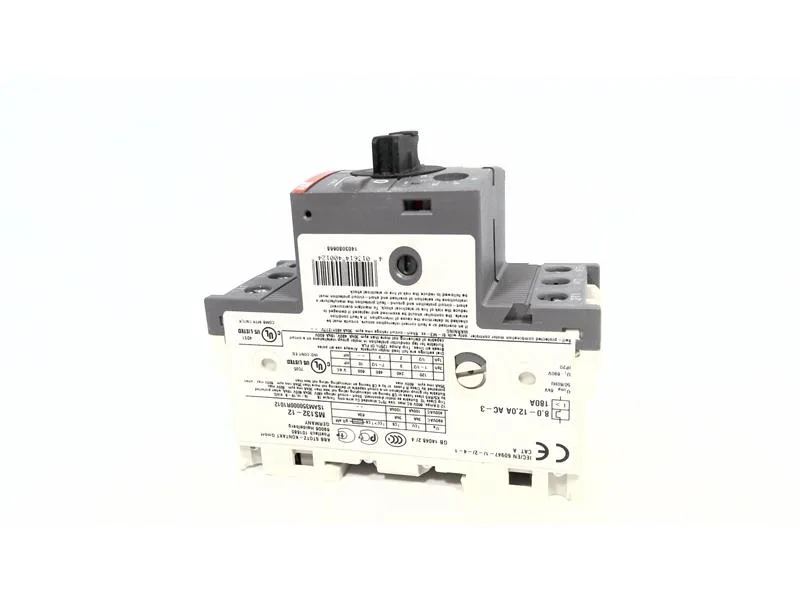

ABB MS132-12 Manual Motor Protector, 12 A, Trip Class 10

MPN MS132-12

ABB MS132-12 manual motor protector, 12 A, 8-12 A adjustable FLA range, Trip Class 10, 3-phase, 600 VAC, 45 mm wide.

$34.16 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

MS132-12 specifications
ParameterValue
Product typeManual Motor Protector
Current12 A
Phases3-phase

Product details

Motor protection that fits the panel and the load

The MS132-12 is a 3-phase manual motor protector with an adjustable full-load amp range of 8 to 12 A, covering fractional to small integral-horsepower motors on 600 VAC lines. Trip Class 10 means it opens within 10 seconds at 600% of the set current — fast enough to protect the motor winding during a stalled rotor or jam, but not so fast that it trips on normal inrush during start. Built-in phase failure detection shuts the motor down if one phase drops out, preventing single-phasing damage that would otherwise cook the winding in minutes.

Integrated short-circuit protection — one device, not two

The MS132-12 includes short-circuit protection rated at 600 VAC, so you don't need a separate upstream fuse or circuit breaker for the motor branch circuit — it's a combined manual motor starter and protector in one 45 mm package. This simplifies the panel layout and reduces wiring time: one incoming line, one outgoing load, no coordination study between a separate breaker and overload relay.

Sourced through authorized distribution channels; volume pricing and lead time confirmed at RFQ against your BOM quantity.

MPN
MS132-12
