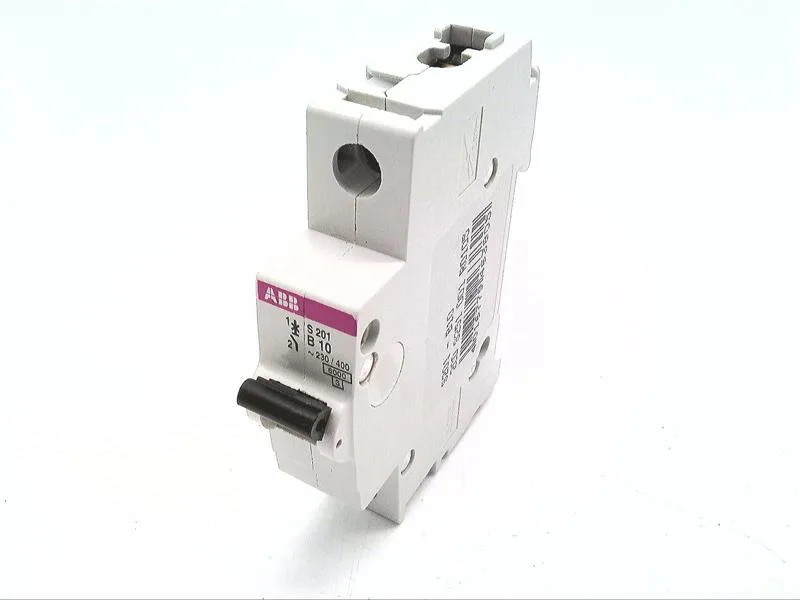

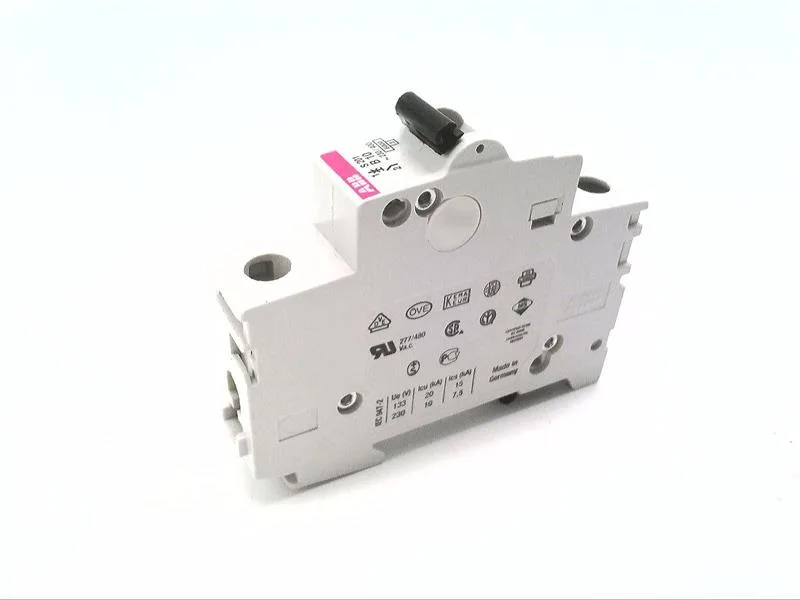

ABB S201-B10 Miniature Circuit Breaker
MPNS201-B10
10A, 480Y/277V, 6 kAIC, B-Curve, UL 1077, CB|Miniature Circuit Breaker, 10 Amps, 480Y/277V AC. B - Curve. 6 kAIC. S200 Series. Supplemental Protectors. UL 1077, CSA 22.2.
$20.90 – $35.20Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Clip Mount |
| Terminal contact type | Bi-Directional Cylinder Lift |
| Tightening torque - Screw-Type max. | 2.8 Nm |
| Voltage | 250 V |
| Current | 10 A |
| Rated Short-Circuit breaking capacity icn | 6 kA |
| Rated Short-Circuit breaking capacity icu | 10 kA |
| Poles | 1 |
| IP rating | IP20;IP40 |
| Depth | 69 mm |
| Width | 17.5 mm |
| Height | 88 mm |
| Overvoltage category | III |
| Tripping characteristics | B |
MPN
S201-B10
