The S201-C6 is a 1-pole miniature circuit breaker rated 6 A with a Trip Curve C characteristic, meaning it trips at 5 to 10 times rated current — the standard choice for moderate inrush loads like small motors, contactor coils, and lighting ballasts where you need short-circuit protection without nuisance tripping on startup. DIN-rail mounting means it snaps into the standard 35 mm rail inside the panel — no screws, no bracket, just clip it in and wire the line/load terminals.

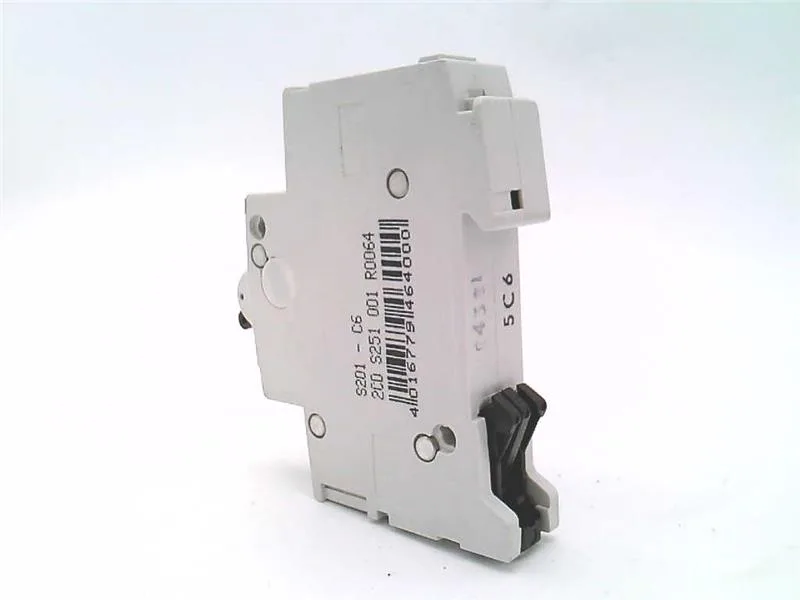

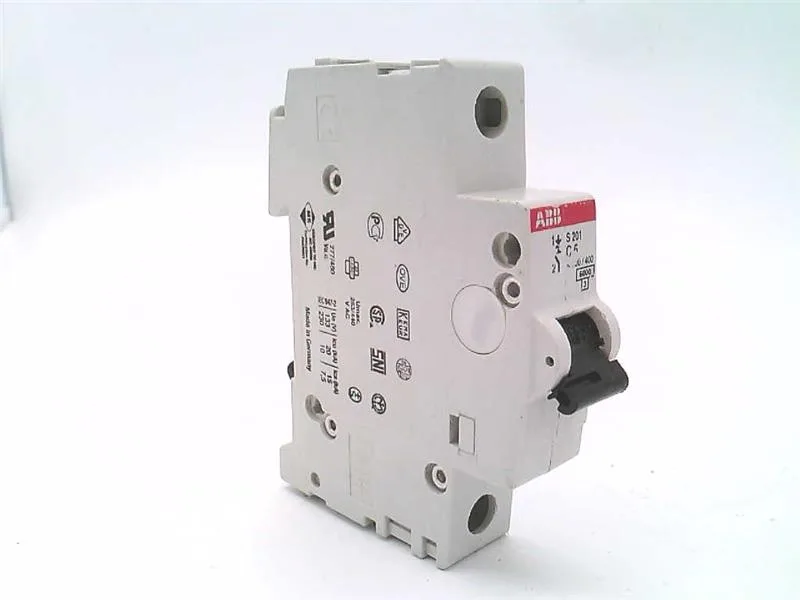

S201-C6 Miniature Circuit Breaker, 6 A, 1-Pole, C Curve, DIN
MPNS201-C6
ABB S201-C6, miniature circuit breaker, 6 A, 1 pole, Trip Curve C, 277 VAC, 6 kA interrupting rating, DIN rail mount.
$3.62Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Amps | 6 |
| Type | Trip Curve C |
| Poles | 1 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 6 kA |
Product details
Frequently asked questions
Where can I buy S201-C6 and how do I get a price?
The S201-C6 is sourced and quoted to order against an RFQ through independent distribution channels. Submit a request for quote; availability and current pricing are confirmed at quote time.
What is S201-C6's listed amps on this component line?
The S201-C6 is rated 6 A.
What is S201-C6's listed type on this component line?
It is a Trip Curve C miniature circuit breaker.
