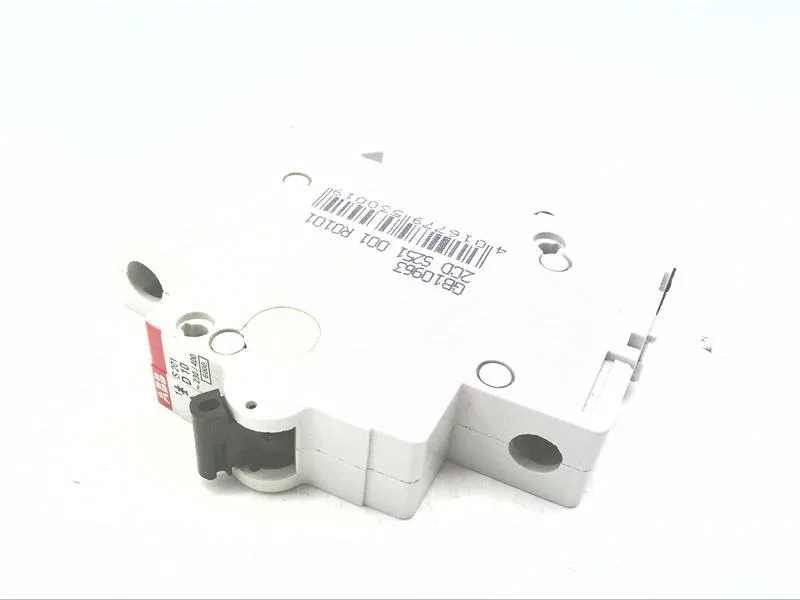

ABB S201-D10, miniature circuit breaker, 1-pole, 10 A, Trip Curve D, 277 V AC, 6 kA interrupting capacity, DIN rail mount, thermal-magnetic trip.
| Parameter | Value |
|---|---|
| Amps | 10 |
| Type | Trip Curve D |
| Poles | 1 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 6 kA |
Trip Curve D means the breaker tolerates a higher inrush before tripping magnetically — typically 10 to 20 times the rated current. The 10 A rating sets the continuous current limit; the D curve sets the short-circuit trip threshold.
The S201-D10 is sourced to order against an RFQ through independent distribution. Submit a quote request; availability and current pricing are confirmed at quote time.
The S203-D13 is a 3-pole version of the same family, also 10 A and Curve D, but rated 10 kA interrupting capacity versus the S201-D10's 6 kA. It will not drop into a 1-pole slot without rewiring the panel — it occupies three module widths and requires a three-phase or three-circuit feed.
The S201-D10 is rated 10 A continuous current, with a Trip Curve D magnetic trip threshold.
The S201-D10 uses a Trip Curve D characteristic — magnetic trip between 10 and 20 times the rated current, suited for high-inrush loads.
No — the S203-D13 is a 3-pole breaker; the S201-D10 is a 1-pole. The physical footprint, wiring connections, and circuit count are different. A panel designed for a 3-pole breaker would need rewiring and possibly a different DIN-rail layout to accept a 1-pole unit.
The S201-D10 is listed under UL 1077 and carries a thermal-magnetic trip device. Standard documentation from ABB includes RoHS and REACH declarations; specific certificates are available on request.
