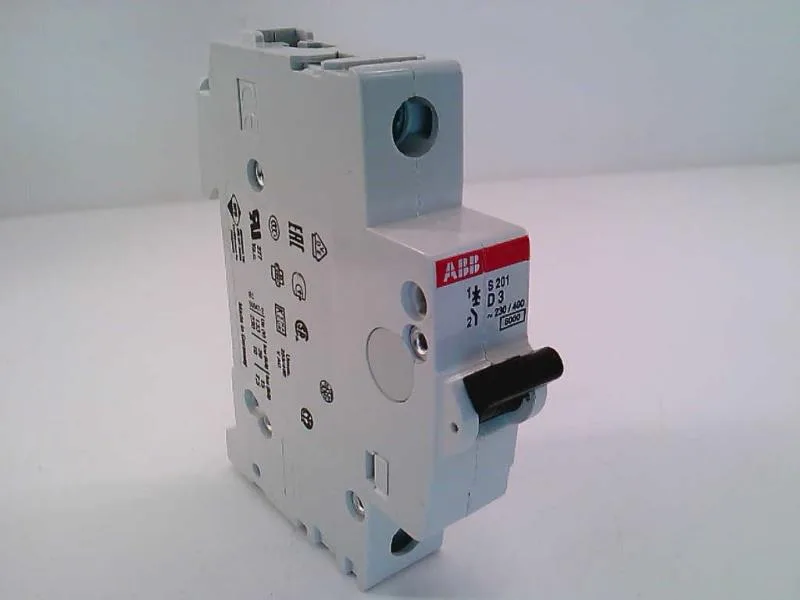

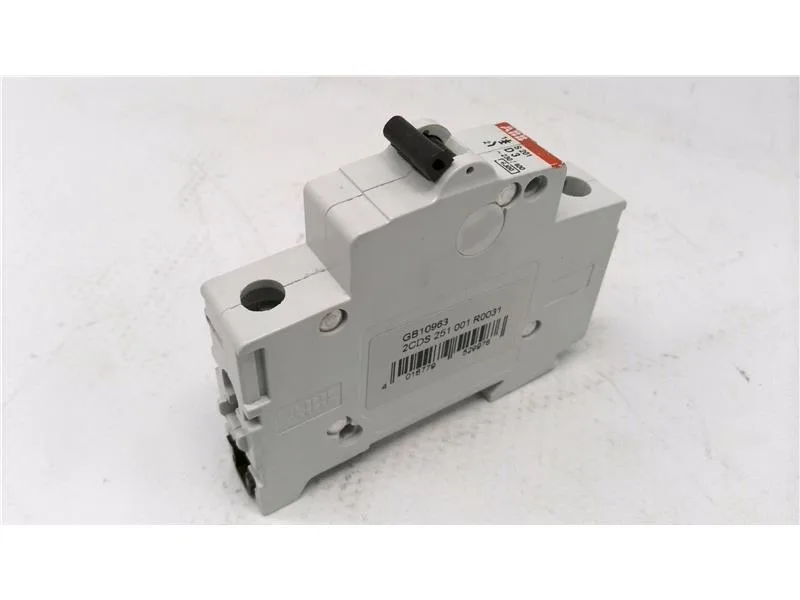

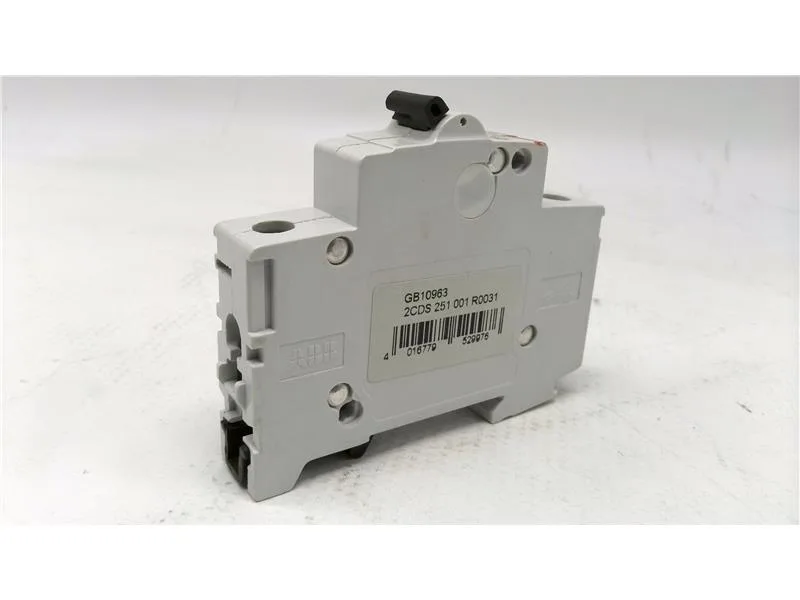

ABB S201-D3

S201-D3 MCB 1P D 3A 277VAC 6kA DIN Rail

MPN S201-D3

ABB S201-D3, 1-pole miniature circuit breaker, Trip Curve D, 3 A, 277 VAC, 6 kA interrupting rating, DIN rail mount.

$7.12 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S201-D3 specifications
ParameterValue
Product typeTrip Curve D
Current3 A
Breaking capacity6 kA
Poles1
MountingDIN Rail

Product details

Trip Curve D means the magnetic trip operates at 10–20× In (30–60 A for this 3 A unit), so it handles high inrush from motor starters, transformers, or discharge lamps without nuisance tripping. That's the key difference from a Curve C (5–10× In) or Curve B (3–5× In) — if your load has a big magnetizing surge, D is the right call.

Lifecycle status is current — no obsolescence notice on this code.

In a crowded panel, that single-pole footprint leaves room for adjacent breakers or aux contacts. Rated 277 VAC phase-to-neutral — common for 480Y/277 V wye systems where the breaker protects a single-phase load off one leg.

MPN
S201-D3
