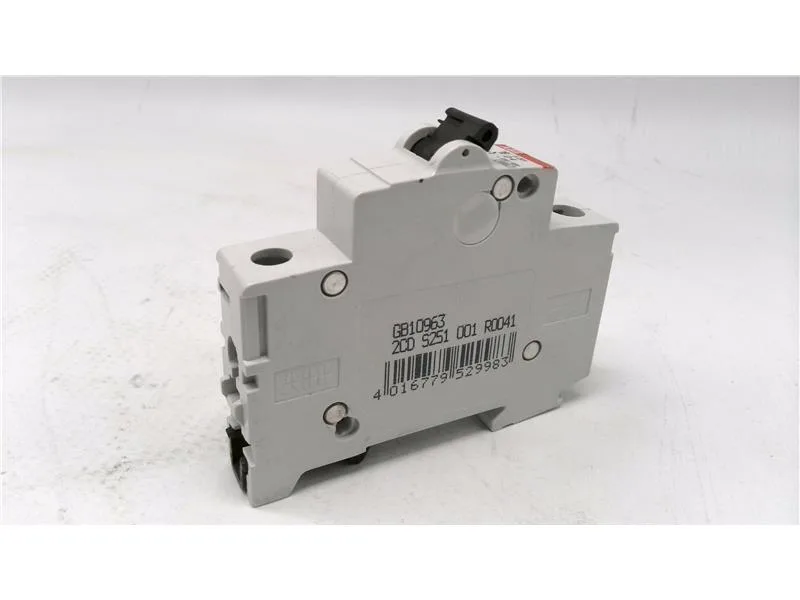

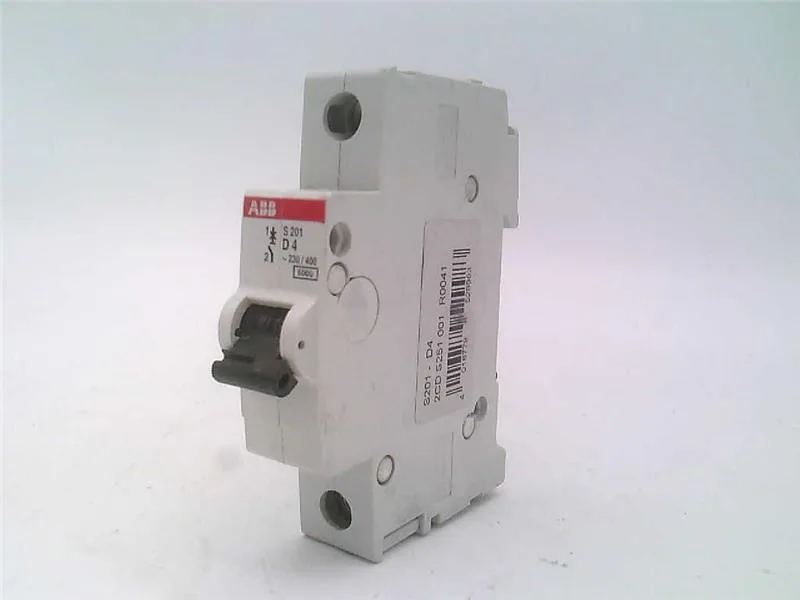

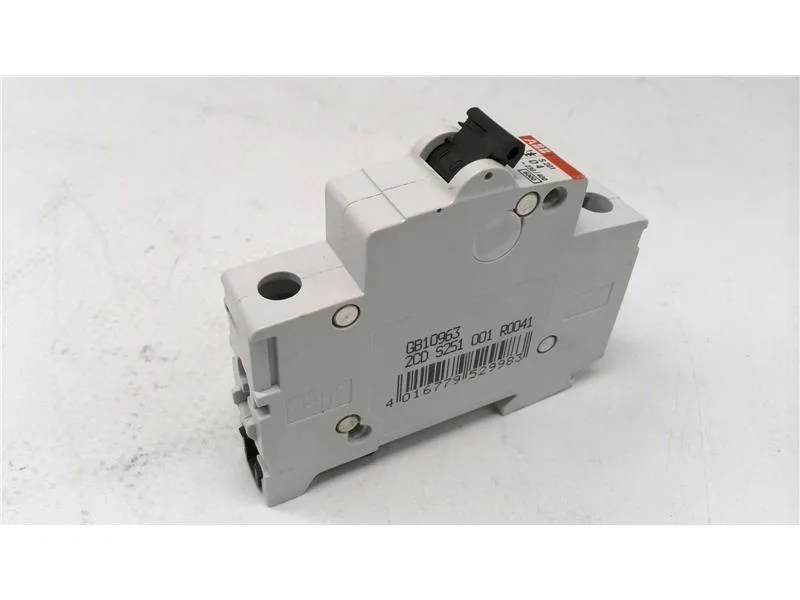

ABB S201-D4 — 1-Pole MCB (DIN Rail)

S201-D4 MCB 1P D 4A 277V AC DIN Rail

MPNS201-D4

ABB S201-D4, 1-pole miniature circuit breaker, Trip Curve D, 4 A, 277 V AC, 6 kA interrupting rating, DIN-rail mount.

$96.11Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

S201-D4 — Specifications
ParameterValue
Amps4
TypeTrip Curve D
Poles1
MountingDIN Rail
Volts AC277
Breaking capacity6 kA

Product details

The ABB S201-D4 is a 1-pole miniature circuit breaker (MCB) with a Trip Curve D characteristic, rated 4 A at 277 V AC. The D-curve means the magnetic trip is set to activate between 10x and 20x In (40–80 A instantaneously), designed for loads with high inrush current — motor starters, small transformers, solenoid valves, or lighting ballasts where a C-curve would nuisance-trip on startup.

The 1-pole width (roughly 17.5 mm) keeps panel density high — you can pack 16 of these in a 12-inch rail segment. Rated for 277 V AC phase-to-neutral on a 480Y/277 V wye system, so it's a direct fit for North American lighting panels where each breaker feeds a single-phase branch.

Frequently asked questions

What is S201-D4's listed amps and trip curve?

The S201-D4 is rated 4 A with a Trip Curve D characteristic — magnetic trip between 10x and 20x In, suited for loads with high inrush.

MPN
S201-D4
