The ABB S201-K10NA is a 1-pole miniature circuit breaker from the System pro M compact S201 series, rated 10 A with a K-type trip curve. The K curve means the magnetic trip threshold is 8–12× In (80–120 A instantaneous), designed for loads with moderate inrush — think motor circuits, transformers, or solenoid valves where a B curve would nuisance-trip on startup but a D curve would delay too long for conductor protection. At 277 VAC (line-to-neutral on a 480Y/277 V system) it interrupts faults up to 6 kA, which covers most commercial panelboard applications; verify the available fault current at the installation point stays under that 6 kA rating.

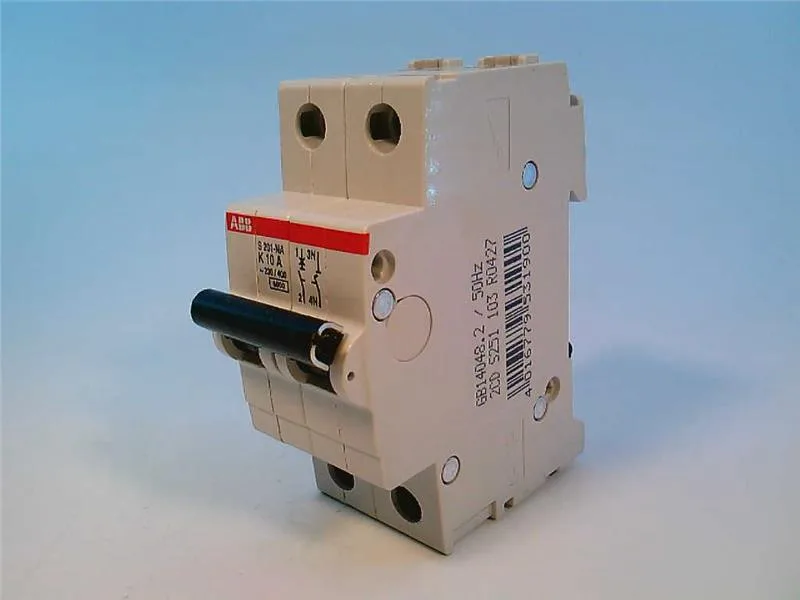

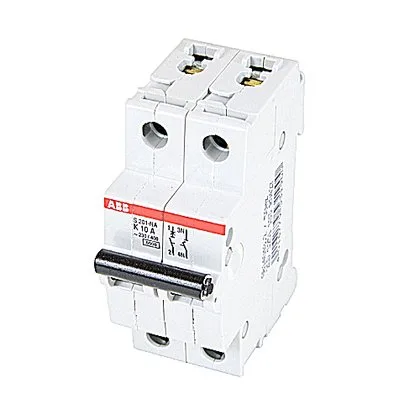

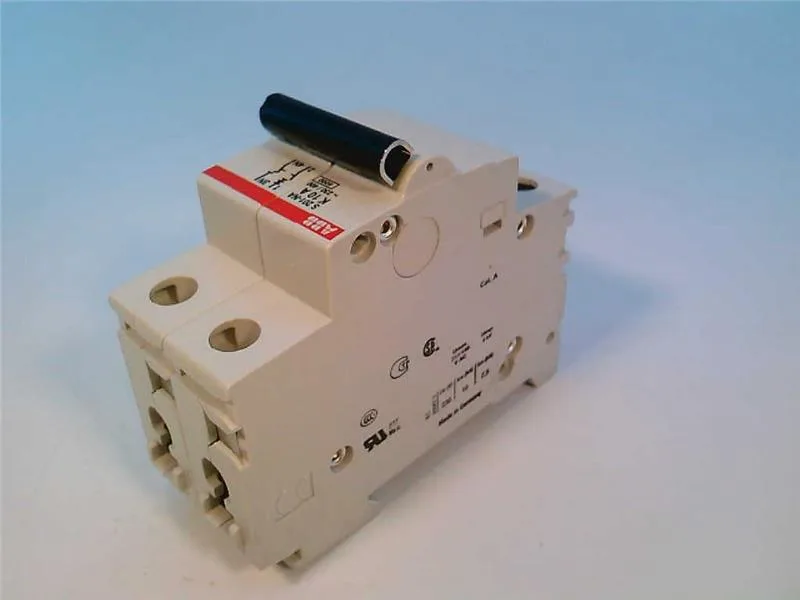

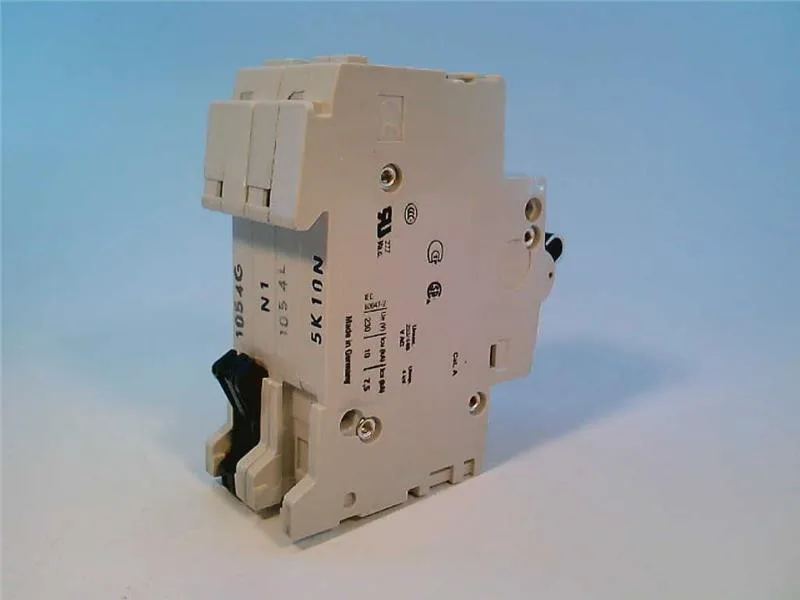

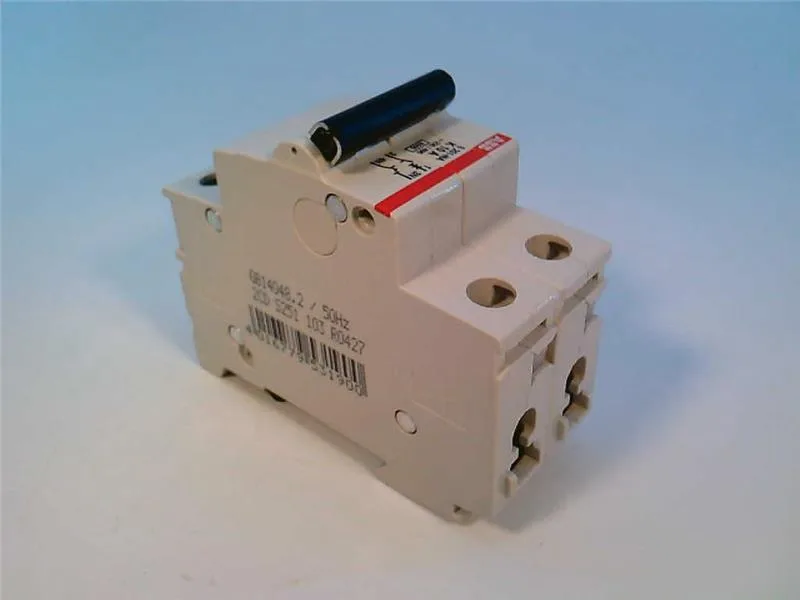

S201-K10NA ABB MCB 1P K-Curve 10A 277V DIN Rail
MPN S201-K10NA
ABB System pro M compact S201 series, miniature circuit breaker (MCB), 1-pole, trip curve K, 10 A, 277 VAC, 6 kA interrupting capacity, DIN rail mount.
$192.84
Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Trip Curve K |
| Current | 10 A |
| Breaking capacity | 6 kA |
| Poles | 1 |
| Mounting | DIN Rail |
Product details
S201-K10NA Datasheet
MPN
S201-K10NA
