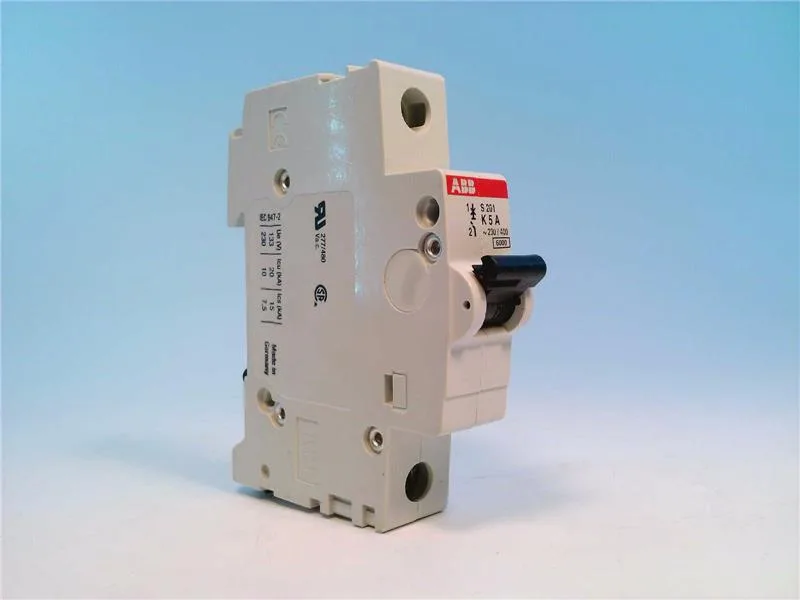

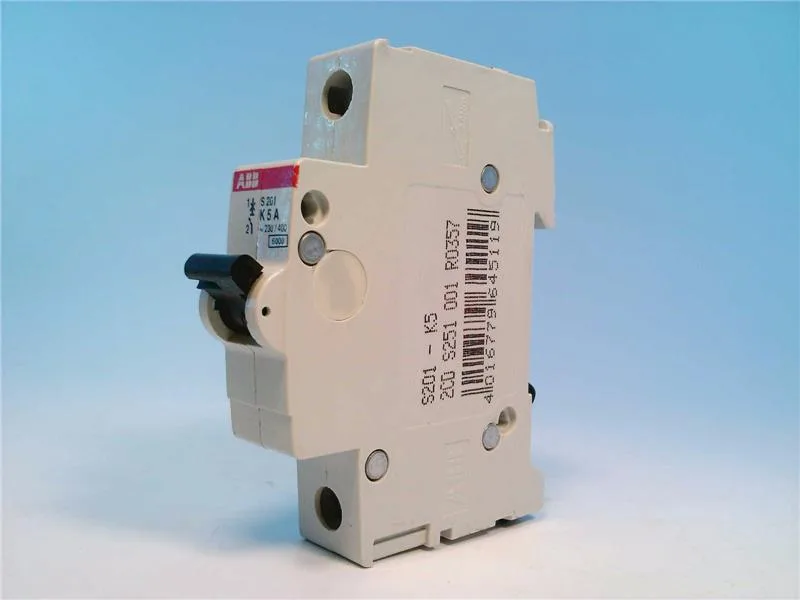

ABB S201-K5

ABB S201-K5 S200 Series, 5A K-Curve, 1-Pole, 277V, 6kA

MPN S201-K5

ABB S200 Series, S201-K5, 1-pole K-curve miniature circuit breaker, 5 A, 277 V AC, 6 kA interrupting capacity, UL 1077 supplemental protector.

$42.96 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S201-K5 specifications
ParameterValue
Product typeTrip Curve K
Current5 A
Breaking capacity6 kA
Poles1
MountingDIN Rail

Product details

It's listed as a UL 1077 supplemental protector, meaning it's intended for branch-circuit overcurrent protection within equipment — not as a service-entrance main breaker. The K-curve is engineered for moderate inrush tolerance, typically used on inductive loads like motor starters, solenoid valves, and small transformers where a standard C-curve might nuisance-trip on startup.

Ratings and deployment context

Rated 277 V AC with a 6 kA interrupting capacity, this breaker mounts on standard DIN rail — common in control panels and distribution boards. The single-pole format occupies one 18 mm module, so it fits tightly in crowded enclosures. For a 5 A branch feeding a contactor coil or a small pump motor, the K-curve holds through the magnetizing inrush without opening, but trips fast on hard shorts.

Listed under UL 1077 and CSA 22.2, the S201-K5 is recognized for use in North American industrial control panels as a supplemental protector. The UL 1077 classification means it's not a branch-circuit rated breaker per UL 489, but it's accepted downstream of a UL 489 device for component-level overcurrent protection. RoHS and REACH compliance documentation is standard with the series.

MPN
S201-K5
