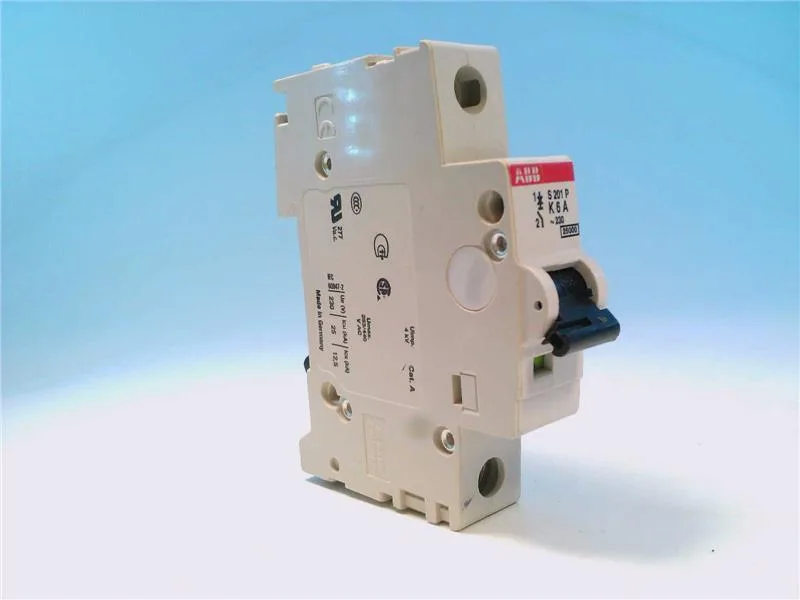

ABB S201P-K6, 1-pole miniature circuit breaker, 6 A, Trip Curve K, 277 VAC, 10 kA interrupting rating, DIN rail mount.
| Parameter | Value |
|---|---|
| Amps | 6 |
| Type | Trip Curve K |
| Poles | 1 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 10 kA |
The ABB S201P-K6 is a 1-pole miniature circuit breaker rated 6 A with a Trip Curve K characteristic, designed for DIN-rail mounting in distribution boards and control panels. It interrupts fault currents up to 10 kA at 277 VAC, covering the typical line-to-neutral voltage on 480Y/277 VAC systems.
Trip Curve K is the middle ground between B and C curves: magnetic trip at 8–12× rated current (48–72 A for this 6 A breaker).
The S201P-K6 is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit a request for a firm price and lead time.
10 kA at 277 VAC. That is the maximum fault current the breaker can safely interrupt without welding contacts or rupturing the housing.
ABB typically supplies a Declaration of Conformity covering the applicable directives (Low Voltage Directive, EMC) and standards (IEC/EN 60898-1). The part carries CE marking. Specific RoHS and REACH compliance statements are available on request as part of the product documentation package.
