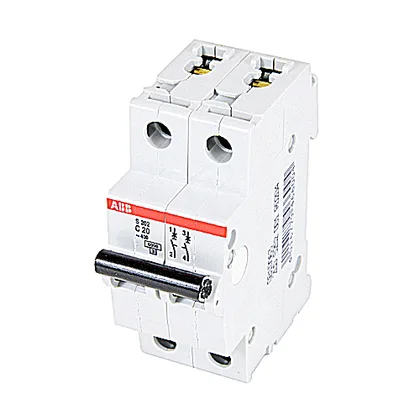

ABB S202-C20

S202-C20 Miniature Circuit Breaker, 20 A, 2-Pole, Curve C, D

MPN S202-C20

ABB S202-C20 miniature circuit breaker, 20 A, 2-pole, Trip Curve C, 277 VAC, 6 kA interrupting rating, DIN rail mount.

Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202-C20 specifications
ParameterValue
Product typeTrip Curve C
Current20 A
Breaking capacity6 kA
Poles2
MountingDIN Rail

Product details

The ABB S202-C20 is a 2-pole miniature circuit breaker rated 20 A with a Trip Curve C characteristic, designed for DIN rail mounting in distribution panels and control cabinets. Its 6 kA interrupting rating at 277 VAC covers the fault-clearing requirement for most commercial and light industrial branch circuits — the 6 kA figure is the SCCR the breaker can safely interrupt without welding its contacts or cascading failure upstream. Curve C means the magnetic trip activates at 5 to 10 times rated current (100 to 200 A), so it holds through motor inrush and transformer energization but trips fast on a hard short.

Panel integration

The 2-pole width (2 modules at 17.5 mm each) fits a 36 mm slot in the enclosure. Terminal design accepts 0.5 to 25 mm² copper conductor; torque to 2.5 Nm for solid or stranded wire. Leave at least 10 mm of straight conductor before the terminal to avoid stress on the cage.

MPN
S202-C20
