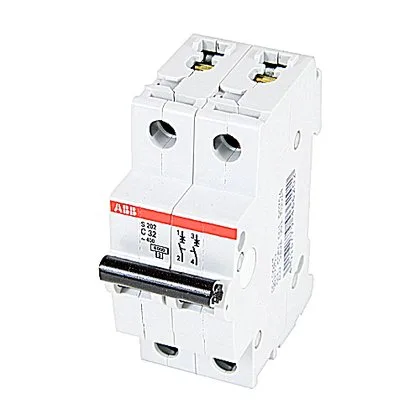

ABB S202-C32 — 2-Pole MCB (DIN Rail)

S202-C32 ABB Miniature Circuit Breaker, 2-Pole, 32 A, Curve

MPNS202-C32

ABB, System pro M compact S200 series, miniature circuit breaker, S202-C32, 2-pole, 32 A, Trip Curve C, 277 VAC, 6 kA interrupting capacity, DIN-rail mount.

$11.43Ref. price · indicative, final on quote
ABB S202-C32 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S202-C32 — Specifications
ParameterValue
Amps32
TypeTrip Curve C
Poles2
MountingDIN Rail
Volts AC277
Breaking capacity6 kA

Product details

Branch-circuit protection for moderate-inrush loads

The ABB S202-C32 is a 2-pole miniature circuit breaker rated 32 A with a Trip Curve C characteristic, meaning it tolerates moderate inrush currents — typical for motor starters, small transformers, or lighting ballasts — before tripping magnetically at 5–10× rated current. The DIN-rail form factor snaps into a standard enclosure, so it replaces an existing S200-series unit without reworking the backplane.

Current-production status and sourcing posture

The S202-C32 carries a current lifecycle stage, so it remains in ABB's active catalog for new builds and BOM-freeze replacements alike.

Panel fit and peer comparison

The S202-C32 drops into the same DIN-rail footprint and uses the same 2-pole wiring scheme as the S202M-C25 (25 A, Curve C) — the only difference is the 32 A thermal rating, so a panel wired for the S202M-C25 accepts the S202-C32 without rewiring, provided the upstream protection and conductor sizing support the higher ampacity.

Frequently asked questions

Where can I buy S202-C32 and how do I get a price?

The S202-C32 is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

When sourcing S202-C32, what's the closest functional second-source — S202M-C25?

The S202M-C25 is the closest functional peer: same 2-pole DIN-rail footprint, same Curve C characteristic, same interrupting rating, but rated 25 A instead of 32 A. It drops into the same panel without rewiring, provided the load current is within 25 A.

What is S202-C32's listed amps (32) on this component line?

The S202-C32 is rated 32 A continuous, with a Trip Curve C magnetic trip threshold of 5–10× rated current (160–320 A).

What is S202-C32's listed type (Trip Curve C) on this component line?

Trip Curve C means the breaker trips magnetically at 5–10 times rated current, suited for loads with moderate inrush such as small motors, transformers, or discharge lighting.

Will S202-C32 drop into a panel that was specified around S202M-C25 without rewiring?

Yes, the S202-C32 shares the same 2-pole DIN-rail footprint and wiring scheme as the S202M-C25, so it fits without rewiring. However, verify that the upstream protection and conductor ampacity are rated for 32 A before substitution.

MPN
S202-C32
