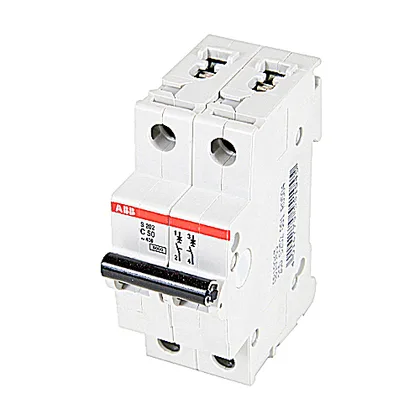

ABB S202-C50 50A C-Curve 2-Pole Miniature Circuit Breaker

MPN S202-C50

ABB S202-C50, 2-pole miniature circuit breaker, 50 A, C trip curve, 277 VAC, 6 kA interrupting capacity, UL 1077, DIN-rail mount.

$19.05 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202-C50 specifications
ParameterValue
Product typeTrip Curve C
Current50 A
Breaking capacity6 kA
Poles2
MountingDIN Rail

Product details

The S202-C50 is a 2-pole miniature circuit breaker rated 50 A continuous with a C trip curve, meaning it holds through moderate motor-start or transformer inrush — typically 5–10× rated current — and trips fast on hard shorts. The thermal-magnetic trip mechanism combines a bimetal element for overload protection and a solenoid for short-circuit response. On the C curve, magnetic trip occurs between 5 and 10 times the rated current — so for a 50 A breaker, instantaneous trip starts around 250 A and is guaranteed by 500 A. That's a good fit for general-purpose distribution and moderate motor loads (pumps, fans, small compressors) where startup current doesn't exceed the curve's hold range.

The 2-pole footprint takes two module widths (36 mm) on the rail — plan your enclosure layout accordingly. Spring-cage terminals accept 0.75–25 mm² conductors; strip length 12 mm. Torque terminals to 2.5 N·m. The busbar comb can feed multiple S200-series breakers in a distribution block, but verify the comb's ampacity matches the 50 A feed.
