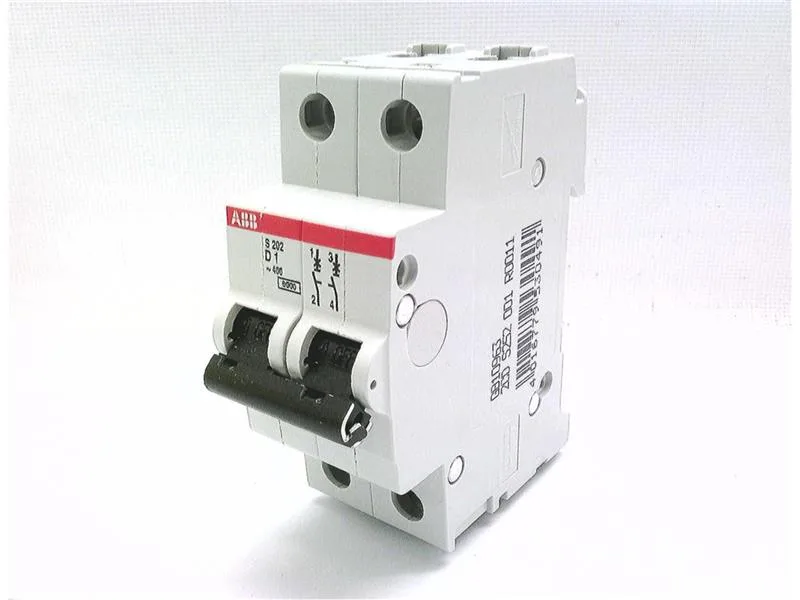

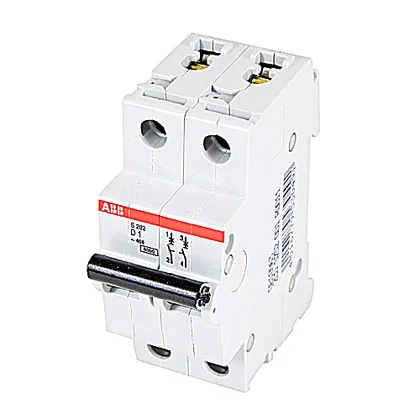

ABB S202-D1

S202-D1 Miniature Circuit Breaker, 1A, 2-Pole, D Curve, 277V

MPN S202-D1

ABB S202-D1 miniature circuit breaker, 2-pole, 1 A, Trip Curve D, 277 VAC, 6 kA interrupting rating, DIN rail mount.

$178.89 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S202-D1 specifications
ParameterValue
Product typeTrip Curve D
Current1 A
Breaking capacity6 kA
Poles2
MountingDIN Rail

Product details

The S202-D1 is a 2-pole miniature circuit breaker rated at 1 A with a Trip Curve D characteristic, meaning it tolerates brief inrush currents up to 10–20 times the rated current before tripping — designed for loads like small motors, transformers, or solenoid valves that draw a heavy start-up spike. DIN rail mounting means it snaps directly into the standard 35 mm rail inside your distribution panel.

The 2-pole configuration covers single-phase or two-leg protection in a 277 VAC line-to-neutral or 480Y/277 VAC wye system. Trip Curve D makes it a good fit for motor branch circuits, small power supplies, or any load with a high inrush-to-running current ratio. The DIN rail footprint means it occupies the same slot as any standard 2-pole MCB — no special adapter or mounting plate needed.

MPN
S202-D1
