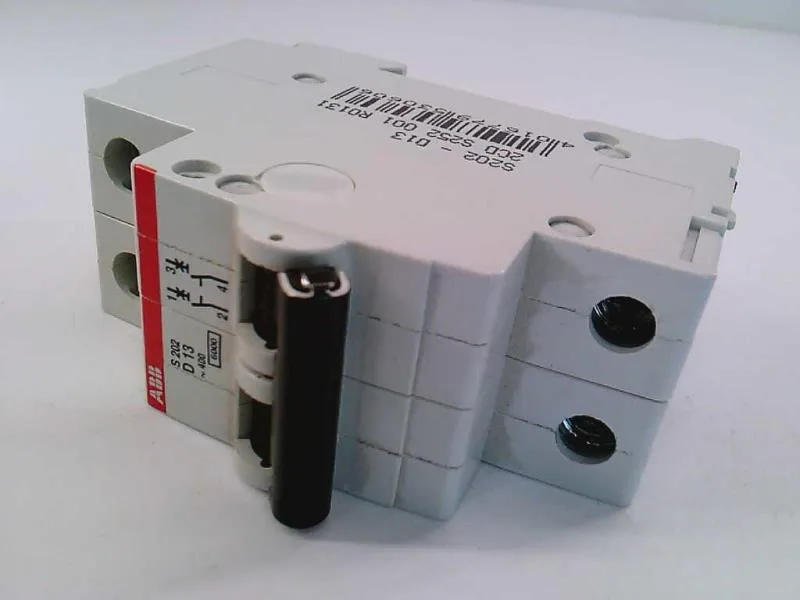

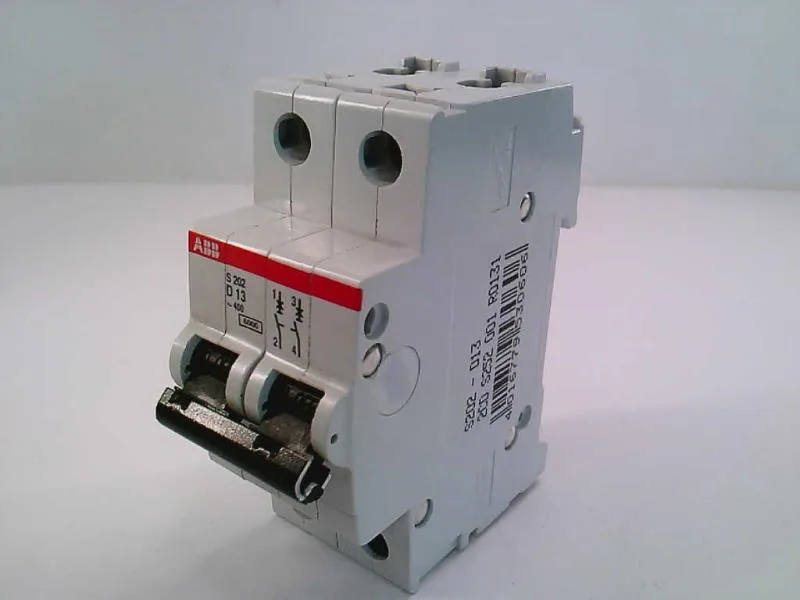

ABB S202-D13, 2-pole miniature circuit breaker, 13 A, Trip Curve D, 277 VAC, 6 kA interrupting, DIN rail mount.
| Parameter | Value |
|---|---|
| Amps | 13 |
| Type | Trip Curve D |
| Poles | 2 |
| Mounting | DIN Rail |
| Volts AC | 277 |
| Breaking capacity | 6 kA |
Rated at 277 VAC with a 6 kA interrupting capacity, this breaker handles fault currents typical of commercial and light industrial branch circuits. The 2-pole configuration suits 480Y/277 VAC systems where line-to-neutral loads need overcurrent protection on both phases. DIN-rail mounting means it clips into the same footprint as other System pro M compact breakers — no panel rework if you're swapping in a Curve D for a C or B.
The S202-D13 is sourced to order against an RFQ through independent distribution. Submit an RFQ for current availability and pricing — no stock or price figures are listed here.
The S202-D13 is rated at 13 A continuous current, with a Trip Curve D characteristic that allows 10–20x inrush before tripping.
The Trip Curve D means the breaker trips at 10 to 20 times the rated current (130–260 A for this 13 A unit), designed for loads with high startup surges like motors and transformers.
Yes, the S202-D13 shares the same DIN-rail footprint and 2-pole form factor as the S202M-C16, so it fits the same panel location without rewiring. The difference is the trip curve — Curve D for inductive loads versus Curve C for general-purpose — and the 13 A rating versus 16 A.
