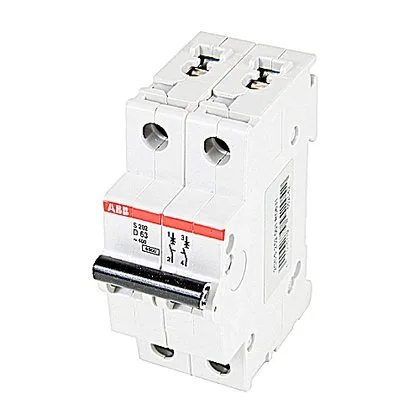

The ABB S202-D63 is a 2-pole miniature circuit breaker rated for 63 A continuous current, with a D-curve trip characteristic that handles high inrush loads like motor starters and transformer primaries without nuisance tripping. Rated 277 V AC phase-to-neutral (480Y/277 V wye systems), it breaks fault currents up to 6 kA — enough for most downstream distribution panels, though verify against your available fault current at the panelboard. Snaps onto standard DIN rail; the 2-pole form factor occupies two module widths in the enclosure, leaving room for adjacent breakers or auxiliaries.

S202-D63 MCB 2P D 63A 277V AC, 6 kA Interrupt
MPN S202-D63
ABB S202-D63, 2-pole Miniature Circuit Breaker, Trip Curve D, 63 A, 277 V AC, 6 kA interrupting capacity, DIN rail mount.
$21.30
Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Trip Curve D |
| Current | 63 A |
| Breaking capacity | 6 kA |
| Poles | 2 |
| Mounting | DIN Rail |
Product details
S202-D63 Datasheet
MPN
S202-D63
